W3282-12PG-535

Active

Conxall/Switchcraft

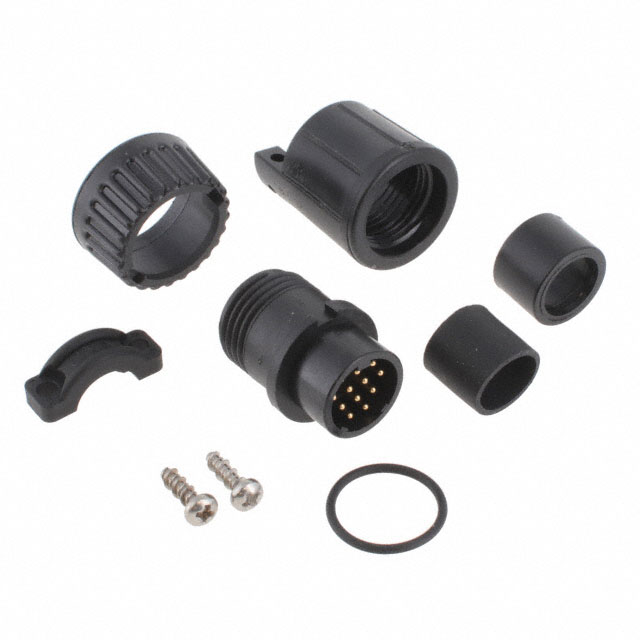

CONN PLUG MALE 12POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

W3282-12PG-535

Active

Conxall/Switchcraft

CONN PLUG MALE 12POS SOLDER CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W3282-12PG-535	W3282 Series

	-	-
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [Max] [diameter]	0.4 in	0.23 - 0.4 in
Cable Opening [Max] [diameter]	10.16 mm	8.13 - 10.16 mm
Cable Opening [Min] [diameter]	8.89 mm	3.05 - 8.89 mm
Cable Opening [Min] [diameter]	0.35 in	0.12 - 0.35 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	12	10 - 12
Orientation	E	E
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

W3282 Series

CONN PLUG MALE 12POS SOLDER CUP

Part	Color	Backshell Material, Plating	Insert Material	Contact Finish - Mating	Primary Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Orientation	Fastening Type	Features	Connector Type	Ingress Protection	Number of Positions	Mounting Type	Voltage Rating	Shielding	Contact Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft W3282-12PG-524	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.24 in	6.86 mm	6.1 mm	0.27 in	E	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Male Pins, Plug	IP67 - Dust Tight, Waterproof	12	Free Hanging (In-Line)	600 V	Unshielded	Brass
Conxall/Switchcraft W3282-12PG-318	Black	Thermoplastic	Thermoplastic	Gold	Plastic					E	Bayonet Lock	Backshell, Coupling Nut	Male Pins, Plug	IP67 - Dust Tight, Waterproof	12	Free Hanging (In-Line)	600 V	Unshielded	Brass	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft W3282-10SG-3DC	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.12 in	6.1 mm	3.05 mm	0.24 in	E	Bayonet Lock	Backshell, Coupling Nut	Female Sockets, Plug	IP67 - Dust Tight, Waterproof	10	Free Hanging (In-Line)	600 V	Unshielded	Brass
Conxall/Switchcraft W3282-10PG-535	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.35 in		8.89 mm	0.4 in	E	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Male Pins, Plug	IP67 - Dust Tight, Waterproof	10	Free Hanging (In-Line)	600 V	Unshielded	Brass					10.16 mm
Conxall/Switchcraft W3282-12SG-324	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.24 in	6.86 mm	6.1 mm	0.27 in	E	Bayonet Lock	Backshell, Coupling Nut	Female Sockets, Plug	IP67 - Dust Tight, Waterproof	12	Free Hanging (In-Line)	600 V	Unshielded	Brass
Conxall/Switchcraft W3282-10PG-321	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.21 in	5.84 mm	5.33 mm	0.23 in	E	Bayonet Lock	Backshell, Coupling Nut	Male Pins, Plug	IP67 - Dust Tight, Waterproof	10	Free Hanging (In-Line)	600 V	Unshielded	Brass
Conxall/Switchcraft W3282-12SG-328	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.28 in	7.37 mm	7.11 mm	0.29 in	E	Bayonet Lock	Backshell, Coupling Nut	Female Sockets, Plug	IP67 - Dust Tight, Waterproof	12	Free Hanging (In-Line)	600 V	Unshielded	Brass
Conxall/Switchcraft W3282-12SG-321
Conxall/Switchcraft W3282-11PG-318	Black	Thermoplastic	Thermoplastic	Gold	Plastic					E	Bayonet Lock	Backshell, Coupling Nut	Male Pins, Plug	IP67 - Dust Tight, Waterproof	11	Free Hanging (In-Line)	600 V	Unshielded	Brass	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft W3282-11SG-530	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.3 in		7.62 mm	0.32 in	E	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Female Sockets, Plug	IP67 - Dust Tight, Waterproof	11	Free Hanging (In-Line)	600 V	Unshielded	Brass					8.13 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.67
		10	$ 20.11
		25	$ 18.86
		50	$ 17.96
		100	$ 17.10
		300	$ 15.82
		500	$ 15.27

Description

General part information

W3282 Series

12 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available
