W3282-10PG-535

Active

Conxall/Switchcraft

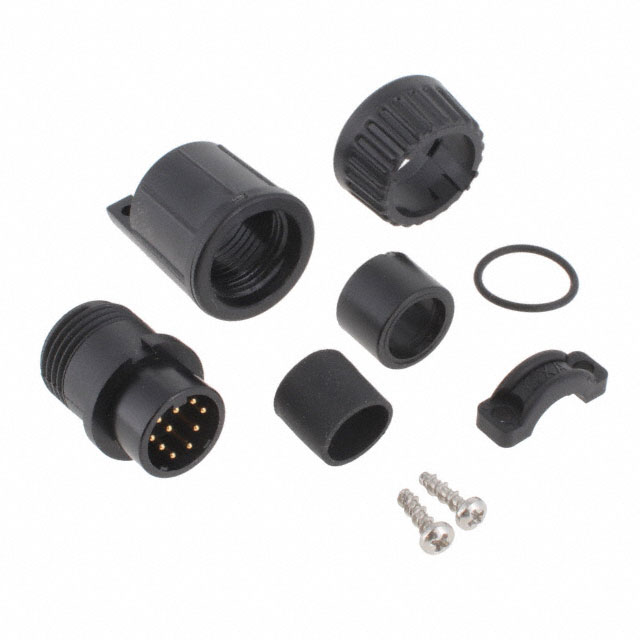

CONN PLUG MALE 10POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

W3282-10PG-535

Active

Conxall/Switchcraft

CONN PLUG MALE 10POS SOLDER CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.09
		10	$ 12.21
		25	$ 11.81

Description

General part information

W3282 Series

10 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W3282-10PG-535	W3282 Series

	-	-
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [Max] [diameter]	0.4 in	0.23 - 0.4 in
Cable Opening [Max] [diameter]	10.16 mm	8.13 - 10.16 mm
Cable Opening [Min] [diameter]	8.89 mm	3.05 - 8.89 mm
Cable Opening [Min] [diameter]	0.35 in	0.12 - 0.35 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	10	10 - 12
Orientation	E	E
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

W3282 Series

CONN PLUG MALE 12POS SOLDER CUP

Part	Color	Backshell Material, Plating	Insert Material	Contact Finish - Mating	Primary Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Orientation	Fastening Type	Features	Connector Type	Ingress Protection	Number of Positions	Mounting Type	Voltage Rating	Shielding	Contact Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft W3282-12PG-524	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.24 in	6.86 mm	6.1 mm	0.27 in	E	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Male Pins, Plug	IP67 - Dust Tight, Waterproof	12	Free Hanging (In-Line)	600 V	Unshielded	Brass
Conxall/Switchcraft W3282-12PG-318	Black	Thermoplastic	Thermoplastic	Gold	Plastic					E	Bayonet Lock	Backshell, Coupling Nut	Male Pins, Plug	IP67 - Dust Tight, Waterproof	12	Free Hanging (In-Line)	600 V	Unshielded	Brass	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft W3282-10SG-3DC	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.12 in	6.1 mm	3.05 mm	0.24 in	E	Bayonet Lock	Backshell, Coupling Nut	Female Sockets, Plug	IP67 - Dust Tight, Waterproof	10	Free Hanging (In-Line)	600 V	Unshielded	Brass
Conxall/Switchcraft W3282-10PG-535	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.35 in		8.89 mm	0.4 in	E	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Male Pins, Plug	IP67 - Dust Tight, Waterproof	10	Free Hanging (In-Line)	600 V	Unshielded	Brass					10.16 mm
Conxall/Switchcraft W3282-12SG-324	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.24 in	6.86 mm	6.1 mm	0.27 in	E	Bayonet Lock	Backshell, Coupling Nut	Female Sockets, Plug	IP67 - Dust Tight, Waterproof	12	Free Hanging (In-Line)	600 V	Unshielded	Brass
Conxall/Switchcraft W3282-10PG-321	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.21 in	5.84 mm	5.33 mm	0.23 in	E	Bayonet Lock	Backshell, Coupling Nut	Male Pins, Plug	IP67 - Dust Tight, Waterproof	10	Free Hanging (In-Line)	600 V	Unshielded	Brass
Conxall/Switchcraft W3282-12SG-328	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.28 in	7.37 mm	7.11 mm	0.29 in	E	Bayonet Lock	Backshell, Coupling Nut	Female Sockets, Plug	IP67 - Dust Tight, Waterproof	12	Free Hanging (In-Line)	600 V	Unshielded	Brass
Conxall/Switchcraft W3282-12SG-321
Conxall/Switchcraft W3282-11PG-318	Black	Thermoplastic	Thermoplastic	Gold	Plastic					E	Bayonet Lock	Backshell, Coupling Nut	Male Pins, Plug	IP67 - Dust Tight, Waterproof	11	Free Hanging (In-Line)	600 V	Unshielded	Brass	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft W3282-11SG-530	Black	Thermoplastic	Thermoplastic	Gold	Plastic	0.3 in		7.62 mm	0.32 in	E	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Female Sockets, Plug	IP67 - Dust Tight, Waterproof	11	Free Hanging (In-Line)	600 V	Unshielded	Brass					8.13 mm
