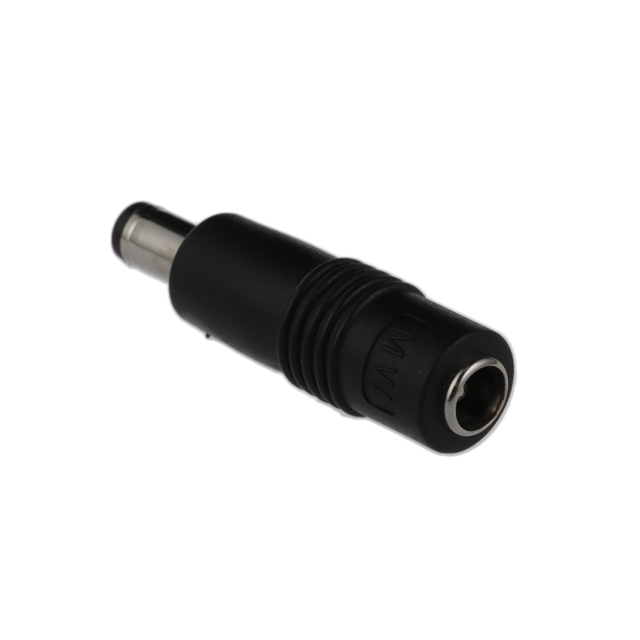

DC PLUG-P1J-P1L

Active

MEAN WELL USA Inc.

BARREL ADAPTER 2.1X5.5X11 TO 2.5

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC PLUG-P1J-P1L

Connector Style	Power DC Adapter
Conversion Type	Same Series
Convert From (Adapter End) [custom]	2.1 mm
Convert From (Adapter End) [custom]	5.5 mm
Convert To (Adapter End)	Plug
Convert To (Adapter End) [diameter]	5.5 mm, 2.5 mm
Gender	Female to Male
Housing Color	Black
Insulation Color	Black
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts	2 Conductors
Shielding	Unshielded

DC PLUG Series

Part	Shielding	Mounting Type	Housing Color	Number of Positions/Contacts	Gender	Convert To (Adapter End)	Convert To (Adapter End) [diameter]	Convert From (Adapter End) [custom]	Convert From (Adapter End) [custom]	Conversion Type	Insulation Color	Connector Style	Convert From (Adapter End)	Color	Convert From (Adapter End) [diameter]	Connector Type [diameter]	Connector Type	Length	Length	Cable Type
MEAN WELL USA Inc. DC PLUG-P1J-P3C	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	1.7 mm 4.8 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-R7BF-P1M						2.5mm DC Plug							Circular Connector Male Pins 4 Pos	Black
MEAN WELL USA Inc. DC PLUG-P1M-P1J	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	2.1 mm 5.5 mm			Same Series	Black	Power DC Adapter	Jack		2.5 mm 5.5 mm
MEAN WELL USA Inc. DC PLUG-P1M-P1JR	Unshielded	Free Hanging (In-Line) Right Angle	Black	2 Conductors	Female to Male	Plug	2.1 mm 5.5 mm			Same Series	Black	Power DC Adapter	Jack		2.5 mm 5.5 mm
MEAN WELL USA Inc. DC PLUG-P1J-P1L	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	2.5 mm 5.5 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-P3A	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	0.7 mm 2.35 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-P1JR	Unshielded	Free Hanging (In-Line) Right Angle	Black	2 Conductors	Female to Male	Plug	2.1 mm 5.5 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-P1IR	Unshielded	Free Hanging (In-Line) Right Angle	Black	2 Conductors	Female to Male	Plug	2.1 mm 5.5 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-P1M	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	2.5 mm 5.5 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-R7B	Unshielded													Black		2.1 mm 5.5 mm	Barrel Plug - 2.1mm ID 5.5mm OD to Circular 04 pos Male	12.2 mm	0.04 ft	Round
