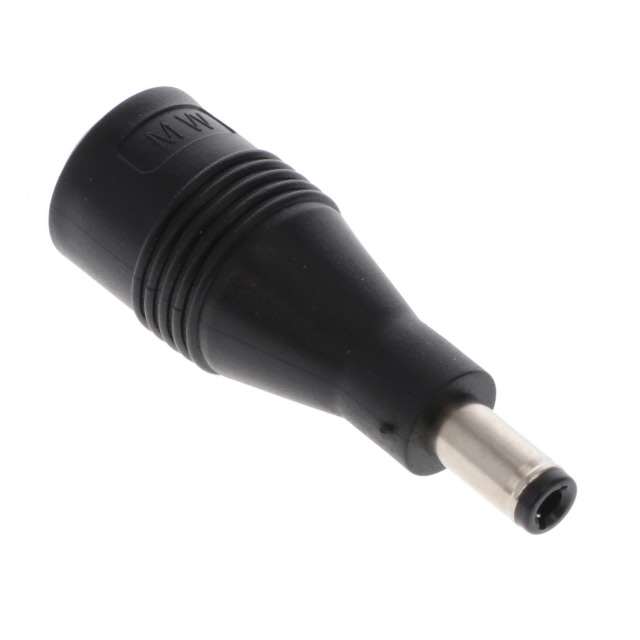

Specification	DC PLUG-R7BF-P1M

Color	Black
Convert From (Adapter End) Positions	4 Pos
Convert From (Adapter End) Type	Circular Connector, Male Pins
Convert To (Adapter End)	DC Plug
Convert To (Adapter End) Precision	2.5 mm

DC PLUG Series

Part	Housing Color	Insulation Color	Conversion Type	Convert To (Adapter End)	Convert To (Adapter End) OD	Convert To (Adapter End) ID	Convert To (Adapter End) Size	Number of Conductors	Connector Style	Gender	Convert From (Adapter End) Type	Convert From (Adapter End) Inner Diameter (ID)	Convert From (Adapter End) Outer Diameter (OD)	Convert From (Adapter End) ID	Shielding	Mounting Type	Cable Type	Length	Connector Type	Connector Pin Count	Color	Convert To (Adapter End) Precision	Convert From (Adapter End) Positions
MEAN WELL USA Inc. DC PLUG-P1J-P3C	Black	Black	Same Series	1.7mm ID x 4.8mm OD Plug	4.8 mm	1.7 mm	1.7 mm	2 Conductors	Power DC Adapter	Female to Male	5.5mm OD Jack	2.1 mm	5.5 mm	2.1 mm	Unshielded	Free Hanging (In-Line)
MEAN WELL USA Inc. DC PLUG-P1J-R6B															Unshielded		Round	0.04 ft	5.5mm OD to Circular Male Barrel Plug - 2.1mm ID	3 Pin	Black
MEAN WELL USA Inc. DC PLUG-P1J-P1I	Black	Black	Same Series	5.5mm OD ID x 5.5mm OD Plug	5.5 mm	2.1 mm	2.1 mm	2 Conductors	Power DC Adapter	Female to Male	5.5mm OD Jack	2.1 mm	5.5 mm	2.1 mm	Unshielded	Free Hanging (In-Line)						2.1 mm
MEAN WELL USA Inc. DC PLUG-R7BF-P1M				DC Plug							Circular Connector Male Pins										Black	2.5 mm	4 Pos
MEAN WELL USA Inc. DC PLUG-P1M-P1J	Black	Black	Same Series	5.5mm OD ID x 5.5mm OD Plug	5.5 mm	2.1 mm	2.1 mm	2 Conductors	Power DC Adapter	Female to Male	Jack			2.5 mm	Unshielded	Free Hanging (In-Line)						2.1 mm
MEAN WELL USA Inc. DC PLUG-P1M-P1JR	Black	Black	Same Series	5.5mm OD ID x 5.5mm OD Plug	5.5 mm	2.1 mm	2.1 mm	2 Conductors	Power DC Adapter	Female to Male	Jack			2.5 mm	Unshielded	Free Hanging (In-Line) Right Angle						2.1 mm
MEAN WELL USA Inc. DC PLUG-P1J-P1L	Black	Black	Same Series	2.5mm ID x 5.5mm OD Plug			2.5 mm	2 Conductors	Power DC Adapter	Female to Male	5.5mm OD Jack	2.1 mm	5.5 mm	2.1 mm	Unshielded	Free Hanging (In-Line)
MEAN WELL USA Inc. DC PLUG-P1J-P3A	Black	Black	Same Series	ID x 2.35mm OD Plug	2.35 mm	0.7 mm	0.7 mm	2 Conductors	Power DC Adapter	Female to Male	5.5mm OD Jack	2.1 mm	5.5 mm	2.1 mm	Unshielded	Free Hanging (In-Line)						0.7 mm
MEAN WELL USA Inc. DC PLUG-P1J-P1JR	Black	Black	Same Series	5.5mm OD ID x 5.5mm OD Plug	5.5 mm	2.1 mm	2.1 mm	2 Conductors	Power DC Adapter	Female to Male	5.5mm OD Jack	2.1 mm	5.5 mm	2.1 mm	Unshielded	Free Hanging (In-Line) Right Angle						2.1 mm
MEAN WELL USA Inc. DC PLUG-P1J-P1IR	Black	Black	Same Series	5.5mm OD ID x 5.5mm OD Plug	5.5 mm	2.1 mm	2.1 mm	2 Conductors	Power DC Adapter	Female to Male	5.5mm OD Jack	2.1 mm	5.5 mm	2.1 mm	Unshielded	Free Hanging (In-Line) Right Angle						2.1 mm
