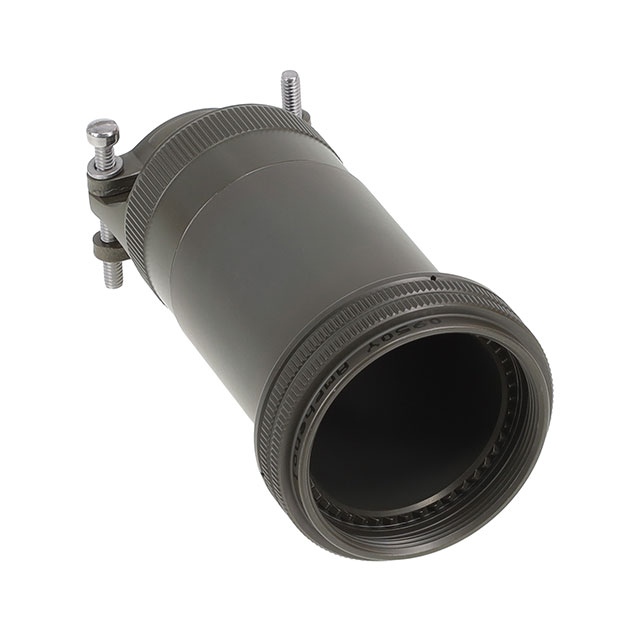

M85049/2125W07A

Active

Amphenol Interconnect India

CONN BACKSHLL W/CLMP SZ25 J OLIV

Deep-Dive with AI

Search across all available documentation for this part.

M85049/2125W07A

Active

Amphenol Interconnect India

CONN BACKSHLL W/CLMP SZ25 J OLIV

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/2125W07A

Cable Exit	180 °
Cable Opening [Max] [custom]	22.23 mm
Cable Opening [Max] [custom]	0.875 in
Cable Opening [Min] [custom]	0.687 in
Cable Opening [Min] [custom]	17.45 mm
Color	Olive Drab
Diameter - Outside [diameter]	1.75 in
Diameter - Outside [diameter]	44.45 mm
Features	Clamp Screws
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	J
Shell Size - Insert	25
Shielding	Unshielded
Type	Backshell, Cable Clamp

M85049/21 Series

...

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Color	Cable Exit	Features	For Use With/Related Products	Shell Size - Insert	Shell Size - Insert	Plating	Shielding	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [custom]
Amphenol Interconnect India M85049/2121Z03B	38.1 mm	1.5 in	Backshell Cable Clamp	Aluminum Alloy	0.38 in	0.25 in	9.65 mm	6.35 mm	Black	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	21	G	Zinc Cobalt	Unshielded
Amphenol Interconnect India M85049/2117Z03	31.75 mm	1.25 in	Backshell Cable Clamp	Aluminum Alloy	0.38 in	0.25 in	9.65 mm	6.35 mm	Black	180 °	Clamp Screws	MIL-DTL-38999 Series III IV		17 E	Zinc Cobalt	Unshielded
Amphenol Interconnect India M85049/2125W07A	44.45 mm	1.75 in	Backshell Cable Clamp	Aluminum Alloy	0.875 in	0.687 in	22.23 mm	17.45 mm	Olive Drab	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	25	J	Cadmium	Unshielded
Amphenol Interconnect India M85049/2125Z08C	44.45 mm	1.75 in	Backshell Cable Clamp	Aluminum Alloy					Black	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	25	G	Zinc Cobalt	Unshielded
Amphenol Interconnect India M85049/2123Z08B	41.91 mm	1.65 "	Backshell Cable Clamp	Aluminum Alloy					Black	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	23	H	Zinc Cobalt	Unshielded
Amphenol Interconnect India M85049/2125Z08B	44.45 mm	1.75 in	Backshell Cable Clamp	Aluminum Alloy					Black	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	25	G	Zinc Cobalt	Unshielded
Amphenol Interconnect India M85049/2125Z07C	44.45 mm	1.75 in	Backshell Cable Clamp	Aluminum Alloy					Black	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	25	G	Zinc Cobalt	Unshielded	0.69 in	22.35 mm	0.88 in	17.53 mm
Amphenol Interconnect India M85049/2121Z06A	38.1 mm	1.5 in	Backshell Cable Clamp	Aluminum Alloy	0.75 in	0.56 in		14.22 mm	Black	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	21	G	Zinc Cobalt	Unshielded					19.05 mm
Amphenol Interconnect India M85049/2125Z07	44.45 mm	1.75 in	Backshell Cable Clamp	Aluminum Alloy					Black	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	25	G	Zinc Cobalt	Unshielded	0.69 in	22.35 mm	0.88 in	17.53 mm
Amphenol Interconnect India M85049/2121Z06	38.1 mm	1.5 in	Backshell Cable Clamp	Aluminum Alloy	0.75 in	0.56 in		14.22 mm	Black	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	21	G	Zinc Cobalt	Unshielded					19.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1130.91
		1	$ 50.12
		10	$ 45.99
		25	$ 44.22
		50	$ 42.75
		100	$ 40.39
		250	$ 39.21

Description

General part information

M85049/21 Series

Olive Drab Connector Backshell, Cable Clamp 25, J

Documents

Technical documentation and resources

No documents available
