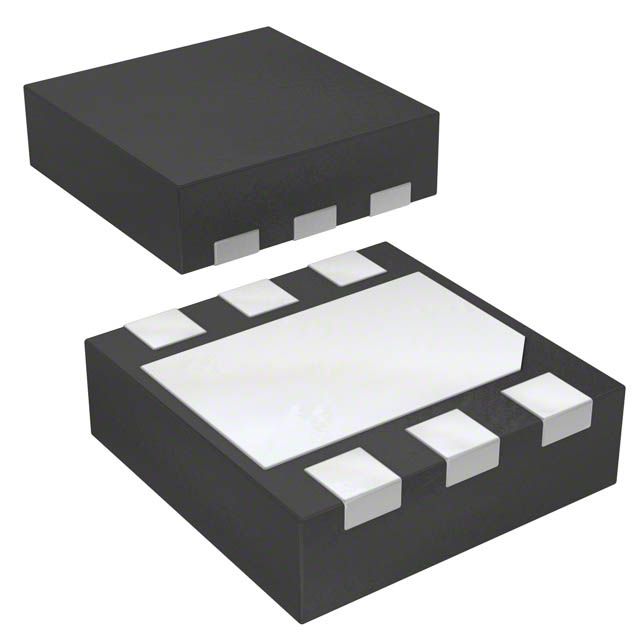

SST12LP08-QX6E

Active

Microchip Technology

RF AMP SINGLE POWER AMP 2.485GHZ 3.6V 6-PIN XSON EP T/R

Search across all available documentation for this part.

Active

Microchip Technology

RF AMP SINGLE POWER AMP 2.485GHZ 3.6V 6-PIN XSON EP T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SST12LP08-QX6E	SST12LP08 Series

Current - Supply	200 mA	200 mA
Frequency [Max]	2.5 GHz	2.5 GHz
Frequency [Min]	2.4 GHz	2.4 GHz
Gain	30 dBi	30 dBi
Mounting Type	Surface Mount	Surface Mount
Package / Case	6-XFDFN Exposed Pad	6-XFDFN Exposed Pad, 12-XFQFN Exposed Pad
RF Type	802.11b/g/n	802.11b/g/n
Supplier Device Package	6-XSON (1.5x1.5)	6-XSON (1.5x1.5), 12-QFN (2x2)
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

RF AMP SINGLE POWER AMP 2.485GHZ 3.6V 6-PIN XSON EP T/R

Part	Gain	Frequency [Max]	Frequency [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply	Supplier Device Package	RF Type	Mounting Type	Package / Case
Microchip Technology SST12LP08-QX6E	30 dBi	2.5 GHz	2.4 GHz	3.6 V	3 V	200 mA	6-XSON (1.5x1.5)	802.11b/g/n	Surface Mount	6-XFDFN Exposed Pad
Microchip Technology SST12LP08-QXBE	30 dBi	2.5 GHz	2.4 GHz	3.6 V	3 V	200 mA	12-QFN (2x2)	802.11b/g/n	Surface Mount	12-XFQFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Amplifier IC 802.11b/g/n 2.4GHz ~ 2.5GHz 6-XSON (1.5x1.5)
