MWB100015A-12A

Obsolete

Inventus Power

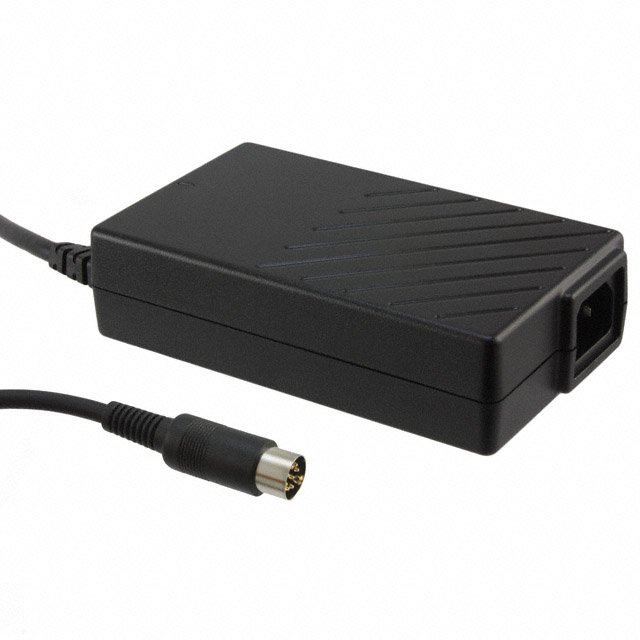

AC/DC DESKTOP ADAPTER 15V 101W

Search across all available documentation for this part.

Obsolete

Inventus Power

AC/DC DESKTOP ADAPTER 15V 101W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 15V 101W

Part	Input Connector	Weight	Weight	Efficiency	Cord Length	Cord Length	Output Connector	Output Connector	Power (Watts)	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Input Type	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	No Load Power Consumption	Approval Agency	Current - Output (Max) [Max]	Region Utilized	Form
Inventus Power MWB100015A-12A	IEC 320-C18	1.1 lbs	499 g	89 %	1.83 m	72 in	8 Pin	DIN	101 W	Medical	132 mm	1.34 in	34 mm	78 mm	3.07 in	5.19 in	Cord	15 VDC	60 °C	0 °C	500 mW	CB, CE, cTUVus	6.7 A	International	Desktop (Class I)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15V 101 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources

No documents available
