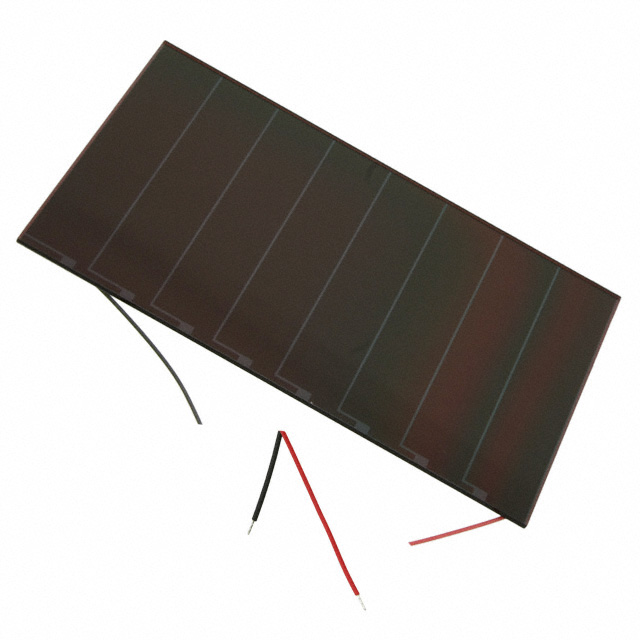

AM-1816CA-DGK-E

Active

Panasonic - BSG

AMORPHOUS SOLAR CELL 252UW 4.9V

Search across all available documentation for this part.

Active

Panasonic - BSG

AMORPHOUS SOLAR CELL 252UW 4.9V

Technical Specifications

Parameters and characteristics for this part

AMORPHOUS SOLAR CELL 252UW 4.9V

Part	Current @ Pmpp	Package / Case	Voltage @ Pmpp	Power (Watts) - Max [Max]	Current - Short Circuit (Isc)	Voltage - Open Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Panasonic - BSG AM-1816CA-DGK-E	84 µA	Cells	3 V	252 µW	94 µA	4.9 V	-10 °C	60 °C	Amorphous	2.232 in, 56.7 mm	3.807 in, 96.7 mm	0.043 ", 1.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Amorphous Solar Cell 252 µW 4.9 V
