General part information

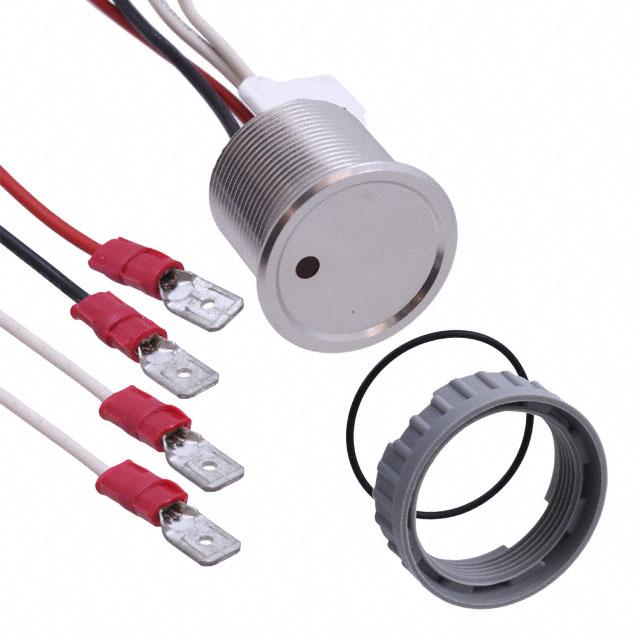

Pushbutton Switch SPST-NO Piezo Panel Mount, Front
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1241.3020.M |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 20000000 Cycles |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Type | Piezo |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 60 VDC |
SWITCH PUSH SPST-NO 100MA 42V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Type | Circuit | Mounting Type | Voltage Rating - AC | Ingress Protection | Electrical Life | Color - Actuator/Cap | Panel Cutout Dimensions [diameter] | Switch Function | Illumination Type, Color | Voltage Rating - DC | Termination Style | Illumination Voltage (Nominal) | Actuator Type | Actuator Marking | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.3020.M | 85 °C | -40 °C | Piezo | SPST-NO | Panel Mount, Front | 42 V | IP67 - Dust Tight, Waterproof | 20000000 Cycles | Silver | 22.3 mm | Off-Mom | LED, Red | 60 VDC | Quick Connect - 0.250" (6.3mm) | 24 V | Button, Flush, Round | No Marking | 100 mA |
