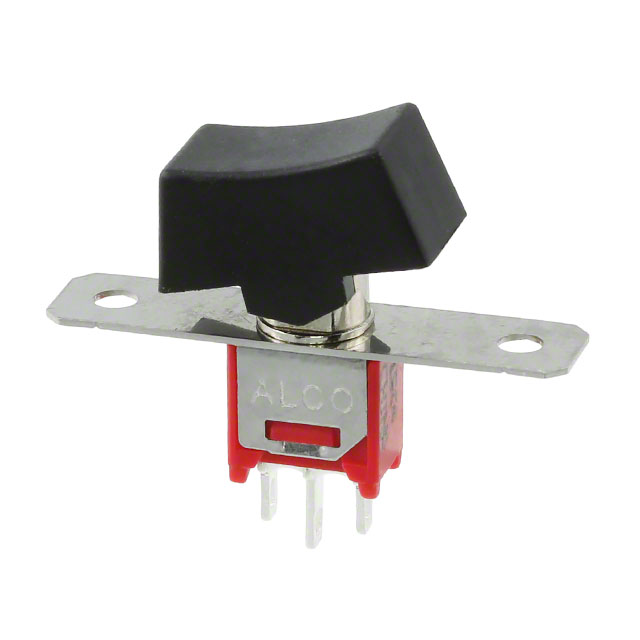

RMS1R102M1QES
ActiveTE Connectivity Raychem Cable Protection
SWITCH ROCKER SPDT 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RMS1R102M1QES
ActiveTE Connectivity Raychem Cable Protection
SWITCH ROCKER SPDT 3A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RMS1R102M1QES |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A |
| Features | Process Sealed |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Flange |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [x] | 15.75 mm |
| Panel Cutout Dimensions [y] | 8.89 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.87 | |
| 10 | $ 2.56 | |||
| 25 | $ 2.43 | |||
| 50 | $ 2.34 | |||
| 100 | $ 2.22 | |||
| 300 | $ 2.16 | |||
Description
General part information
RMS1R1 Series
Rocker Switch SPDT 3A (AC/DC) 120 V Panel Mount, Flange
