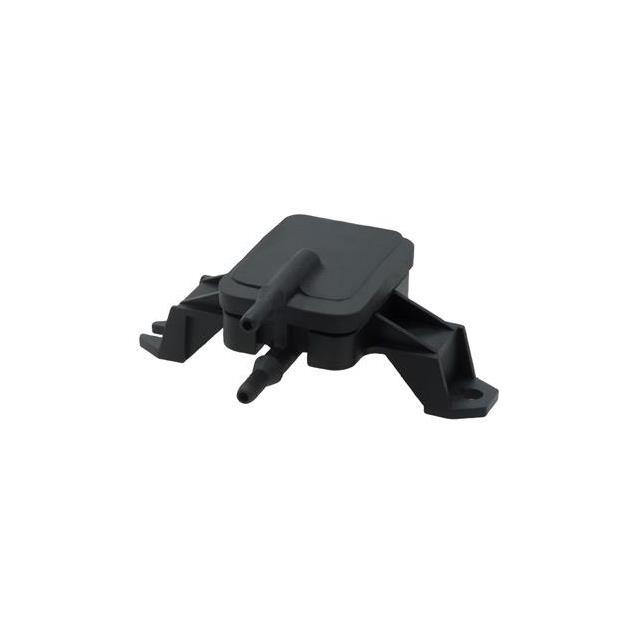

P992-10-A
ActiveSensata Technologies
SENSOR 0.36PSI 4V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P992-10-A
ActiveSensata Technologies
SENSOR 0.36PSI 4V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P992-10-A |
|---|---|
| Applications | Board Mount |
| Features | Temperature Compensated |
| Mounting Type | Through Hole |
| Operating Pressure | 0.36 PSI |
| Operating Pressure | 2.49 kPa |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Output [Max] | 4 V |
| Output [Min] | 0.25 V |
| Output Type | Analog Voltage |
| Package / Case | 4-DIP Module |
| Pressure Type | Differential |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 96.27 | |
| 10 | $ 88.85 | |||
| 50 | $ 61.42 | |||
Description
General part information
P992-10 Series
Pressure Sensor 0.36PSI (2.49kPa) Differential 0.25 V ~ 4 V 4-DIP Module
Documents
Technical documentation and resources
