Specification	2-2423324-3

Connector Type	Header
Contact Length - Post	0.146 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Yellow
Insulation Height	0.486 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.157 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

2423324 Series

Part	Contact Shape	Number of Positions	Termination	Contact Length - Post	Fastening Type	Connector Type	Contact Material	Contact Type	Material Flammability Rating	Style	Shrouding	Mounting Type	Pitch - Mating	Number of Rows	Insulation Material	Number of Positions Loaded	Insulation Height	Insulation Color	Row Spacing - Mating

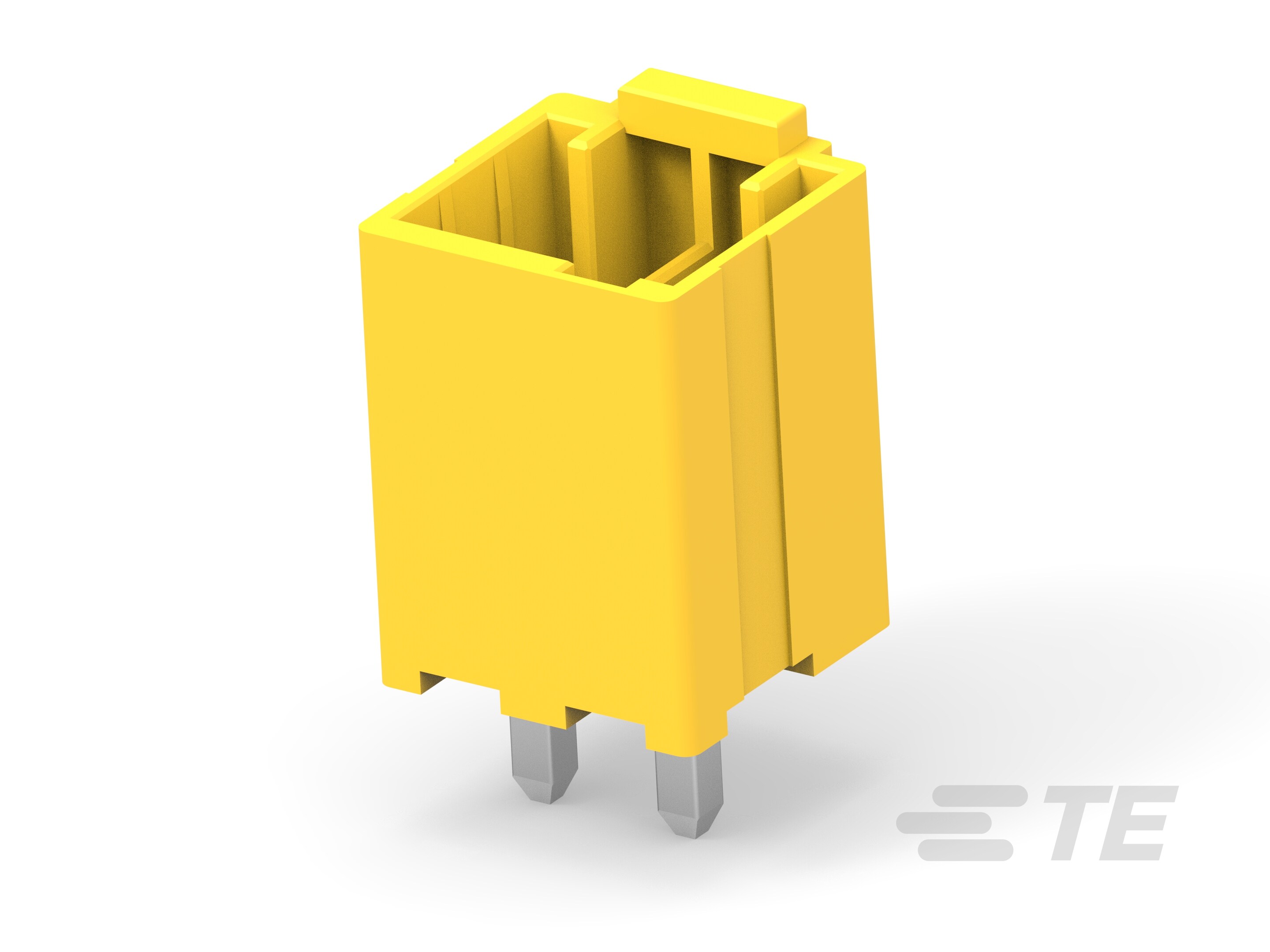

TE Connectivity AMP Connectors 2-2423324-2	Square	2	Solder	0.146 in	Push-Pull	Header	Copper Alloy	Male Pin	UL94 V-0	Board Cable/Wire	Shrouded - 4 Wall	Through Hole	0.157 in	1	Polybutylene Terephthalate (PBT)	All	0.486 in	Yellow
TE Connectivity AMP Connectors 2423324-2	Square	2	Solder	0.146 in	Push-Pull	Header	Copper Alloy	Male Pin	UL94 V-0	Board Cable/Wire	Shrouded - 4 Wall	Through Hole	0.157 in	1	Polybutylene Terephthalate (PBT)	All	0.492 in	Blue
TE Connectivity AMP Connectors 2423324-6	Square	6	Solder	0.146 in	Push-Pull	Header	Copper Alloy	Male Pin	UL94 V-0	Board Cable/Wire	Shrouded - 4 Wall	Through Hole	0.157 in	2	Polybutylene Terephthalate (PBT)	All	0.486 in	Blue	0.234 in
TE Connectivity AMP Connectors 2-2423324-3	Square	3	Solder	0.146 in	Push-Pull	Header	Copper Alloy	Male Pin	UL94 V-0	Board Cable/Wire	Shrouded - 4 Wall	Through Hole	0.157 in	1	Polybutylene Terephthalate (PBT)	All	0.486 in	Yellow
TE Connectivity AMP Connectors 2423324-3	Square	3	Solder	0.146 in	Push-Pull	Header	Copper Alloy	Male Pin	UL94 V-0	Board Cable/Wire	Shrouded - 4 Wall	Through Hole	0.157 in	1	Polybutylene Terephthalate (PBT)	All	0.492 in	Blue
