106081-1
ActiveTE Connectivity AMP Connectors

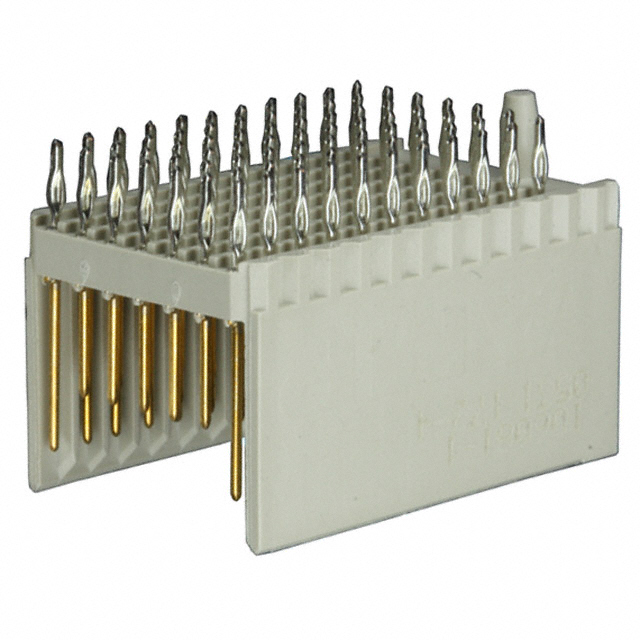

CONN HEADER 77POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
106081-1
ActiveTE Connectivity AMP Connectors
CONN HEADER 77POS 2MM PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 106081-1 |
|---|---|
| Connector Style | C 11 |
| Connector Type | Header, Male Pins |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 1.5 A |
| Features | Board Guide |
| Mounting Type | Through Hole |
| Number of Positions | 55 positions, 22 positions |
| Number of Positions Loaded | All |
| Number of Rows | 2, 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 10.13 | |
| 21 | $ 8.17 | |||
| 42 | $ 7.78 | |||
| 63 | $ 7.56 | |||
| 105 | $ 7.29 | |||
| 252 | $ 6.86 | |||
| 504 | $ 6.53 | |||
| 1008 | $ 6.22 | |||
106081 Series
CONN HEADER 77POS 2MM PRESS-FIT
| Part | Mounting Type | Connector Style | Features | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Positions | Number of Rows | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Connector Usage | Pitch [x] | Pitch [x] | Current Rating (Amps) | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 106081-1 | Through Hole | C 11 | Board Guide | Header, Male Pins | 0.76 Ám | 30 Áin | Gold | 22 positions, 55 positions | 2, 5 | Press-Fit | -55 °C | 125 °C | 500 VAC | Backplane | 0.079 in | 2 mm | 1.5 A | All |
Description
General part information
106081 Series
77 (55 + 22 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
