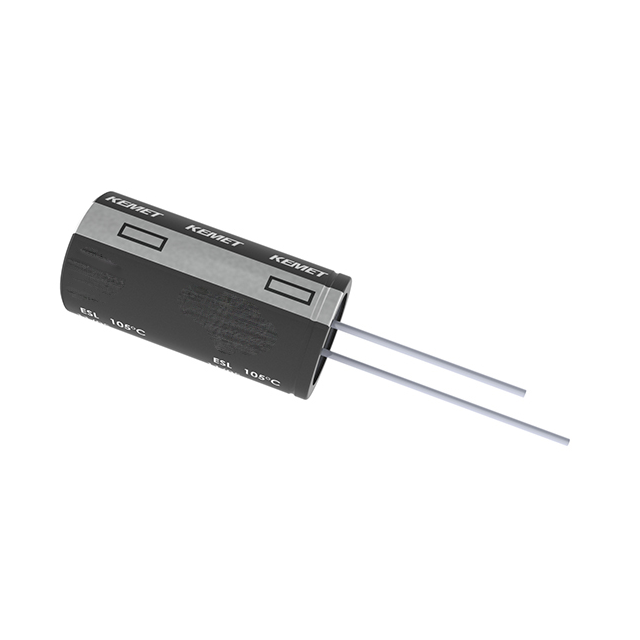

ESL474M063AC3AA

Active

KEMET

.470UF 63.0V ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

.470UF 63.0V ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ESL474M063AC3AA

Applications	General Purpose
Capacitance	0.47 µF
ESR (Equivalent Series Resistance)	1.35 Ohm
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Lead Spacing	2 mm
Lead Spacing	0.079 in
Lifetime @ Temp.	8000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	80 mA
Ripple Current @ Low Frequency	40 mA
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Tolerance	20 %
Voltage - Rated	63 V

Part	Package / Case	Lifetime @ Temp.	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Applications	Ripple Current @ High Frequency	Polarization	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated
KEMET ESL474M063AC3AA	Radial Can	8000 Hrs	40 mA	1.35 Ohm	2 mm	0.079 in	General Purpose	80 mA	Polar	20 %	0.492 in	12.5 mm	Through Hole	0.47 µF	5 mm	0.197 "	-40 °C	105 ░C	63 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.47 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 1.35Ohm @ 100kHz 8000 Hrs @ 105°C
