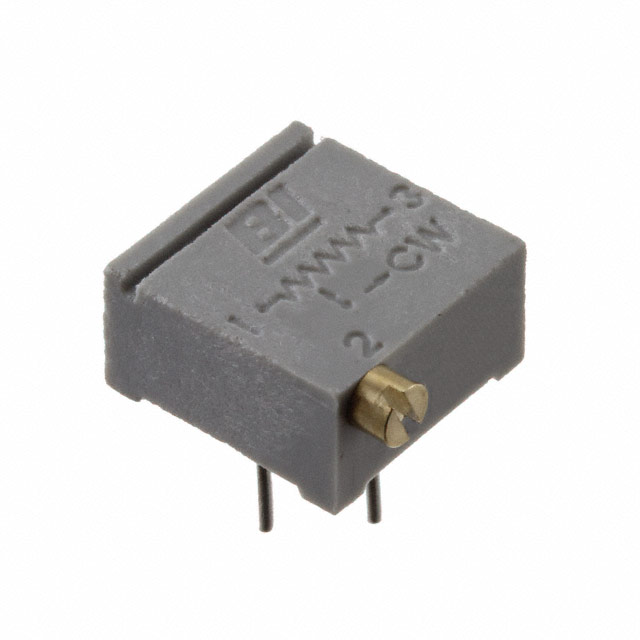

67PR10KLF

Active

TT Electronics/BI

TRIMMER 10K OHM 0.5W PC PIN SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

67PR10KLF

Active

TT Electronics/BI

TRIMMER 10K OHM 0.5W PC PIN SIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	67PR10KLF

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	20
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	10000 Ohms
Resistive Material	Cermet
Size / Dimension [x]	0.375 in
Size / Dimension [x]	9.53 mm
Size / Dimension [y]	0.375 in
Size / Dimension [y]	9.53 mm
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

67PR Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Resistive Material	Mounting Type	Temperature Coefficient	Power (Watts)	Power (Watts)	Resistance	Adjustment Type	Termination Style	Number of Turns
TT Electronics/BI 67PR20LF	11.1 mm	9.53 mm	0.437 in	0.375 in	20 %	Cermet	Through Hole	250 ppm/°C	0.5 W	0.5 W	20 Ohms	Top Adjustment	PC Pins	20
TT Electronics/BI 67PR500KLF	11.1 mm	9.53 mm	0.437 in	0.375 in	10 %	Cermet	Through Hole	100 ppm/°C	0.5 W	0.5 W		Top Adjustment	PC Pins	20
TT Electronics/BI 67PR200LF	11.1 mm	9.53 mm	0.437 in	0.375 in	10 %	Cermet	Through Hole	100 ppm/°C	0.5 W	0.5 W	200 Ohms	Top Adjustment	PC Pins	20
TT Electronics/BI 67PR20KLFTB	11.1 mm	9.53 mm	0.437 in	0.375 in	10 %	Cermet	Through Hole	100 ppm/°C	0.5 W	0.5 W	20 kOhms	Top Adjustment	PC Pins	20
TT Electronics/BI 67PR2KLFTB	11.1 mm	9.53 mm	0.437 in	0.375 in	10 %	Cermet	Through Hole	100 ppm/°C	0.5 W	0.5 W	2 kOhms	Top Adjustment	PC Pins	20
TT Electronics/BI 67PR25KLF	11.1 mm	9.53 mm	0.437 in	0.375 in	10 %	Cermet	Through Hole	100 ppm/°C	0.5 W	0.5 W	25 kOhms	Top Adjustment	PC Pins	20
TT Electronics/BI 67PR10KLF	9.53 mm	9.53 mm	0.375 in	0.375 in	10 %	Cermet	Through Hole	100 ppm/°C	0.5 W	0.5 W	10000 Ohms	Side Adjustment	PC Pins	20
TT Electronics/BI 67PR2MEGLF	11.1 mm	9.53 mm	0.437 in	0.375 in	10 %	Cermet	Through Hole	100 ppm/°C	0.5 W	0.5 W	2 MOhms	Top Adjustment	PC Pins	20
TT Electronics/BI 67PR50KLFTB	11.1 mm	9.53 mm	0.437 in	0.375 in	10 %	Cermet	Through Hole	100 ppm/°C	0.5 W	0.5 W	50 kOhms	Top Adjustment	PC Pins	20
TT Electronics/BI 67PR2KLF	9.53 mm	9.53 mm	0.375 in	0.375 in	10 %	Cermet	Through Hole	100 ppm/°C	0.5 W	0.5 W	2 kOhms	Side Adjustment	PC Pins	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.07
		10	$ 1.82
		25	$ 1.63
		50	$ 1.57
		100	$ 1.50
		250	$ 1.44
		500	$ 1.19
		1000	$ 1.13
		5000	$ 0.94

Description

General part information

67PR Series

10 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 20.0 Turn Side Adjustment
