EGN.0M.660.ZZM

Active

LEMO

CONTACT SOCKET 20-24AWG CRIMP

Search across all available documentation for this part.

Active

LEMO

CONTACT SOCKET 20-24AWG CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

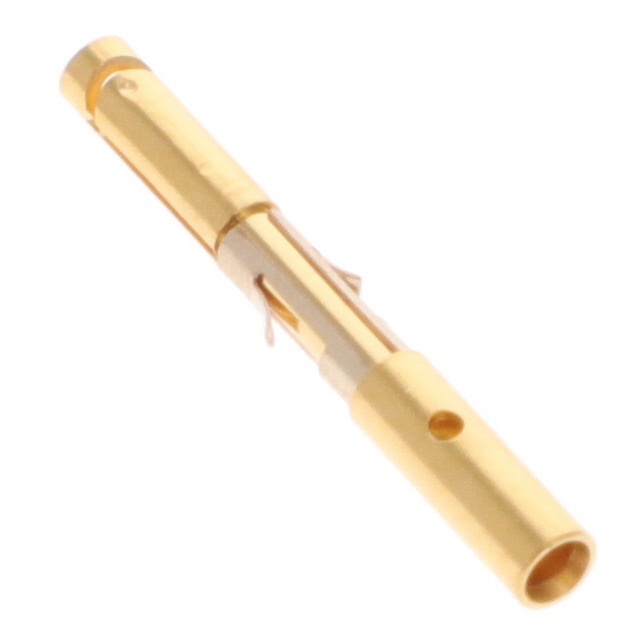

Socket Contact 20-24 AWG Size 0.9mm Crimp Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EGN.0M.660.ZZM	EGN.0M Series

Applications	-	Military, Aerospace, Automotive, Aviation
Color	-	Gray
Connector Type	-	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	59 Áin
Contact Finish Thickness - Mating	-	1.5 Ám
Contact Material	Bronze	Bronze
Contact Size	0.9 mm	0.7 - 0.9 mm
Contact Termination	Crimp	Crimp
Contact Type	Socket	Socket
Current Rating (Amps)	-	6.5 - 7 A
Ingress Protection	-	IP68 - Dust Tight, Waterproof
Insert Material	-	Polyetheretherketone (PEEK)
Mounting Feature	-	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	-	4
Operating Temperature	-	-55 °C
Operating Temperature	-	200 °C
Orientation	-	N
Primary Material	-	Metal
Shell Finish	-	Nickel
Shell Material	-	Aluminum Alloy
Shell Size - Insert	-	304 - 305
Shielding	-	Shielded
Termination	-	Solder, Crimp
Type	Signal, Machined	Signal, Machined
Wire Gauge or Range - AWG [Max]	24 AWG	24 - 26 AWG
Wire Gauge or Range - AWG [Min]	20 AWG	20 - 22 AWG

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Current Rating (Amps)	Shielding	Contact Finish - Mating	Termination	Primary Material	Insert Material	Connector Type	Shell Material	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Color	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Orientation	Applications	Mounting Type	Contact Material	Number of Positions	Contact Termination	Type	Contact Type	Contact Size	Contact Finish	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]
LEMO EGN.0M.304.XLN	7 A	Shielded	Gold	Solder	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Aluminum Alloy	Bulkhead - Rear Side Nut	59 Áin	1.5 Ám	Nickel	Gray	IP68 - Dust Tight, Waterproof	-55 °C	200 °C	304	N	Aerospace, Automotive, Aviation, Military	Panel Mount, Through Hole	Bronze	4
LEMO EGN.0M.660.ZZM																					Bronze		Crimp	Machined, Signal	Socket	0.9 mm	Gold	24 AWG	20 AWG
LEMO EGN.0M.655.ZZM																					Bronze		Crimp	Machined, Signal	Socket	0.7 mm	Gold	26 AWG	22 AWG
LEMO EGN.0M.305.XLM	6.5 A	Shielded	Gold	Crimp	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Aluminum Alloy	Bulkhead - Rear Side Nut	59 Áin	1.5 Ám	Nickel	Gray	IP68 - Dust Tight, Waterproof	-55 °C	200 °C	305	N	Aerospace, Automotive, Aviation, Military		Bronze
LEMO EGN.0M.305.XLN	6.5 A	Shielded	Gold	Solder	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Aluminum Alloy	Bulkhead - Rear Side Nut	59 Áin	1.5 Ám	Nickel	Gray	IP68 - Dust Tight, Waterproof	-55 °C	200 °C	305	N	Aerospace, Automotive, Aviation, Military	Panel Mount, Through Hole	Bronze
