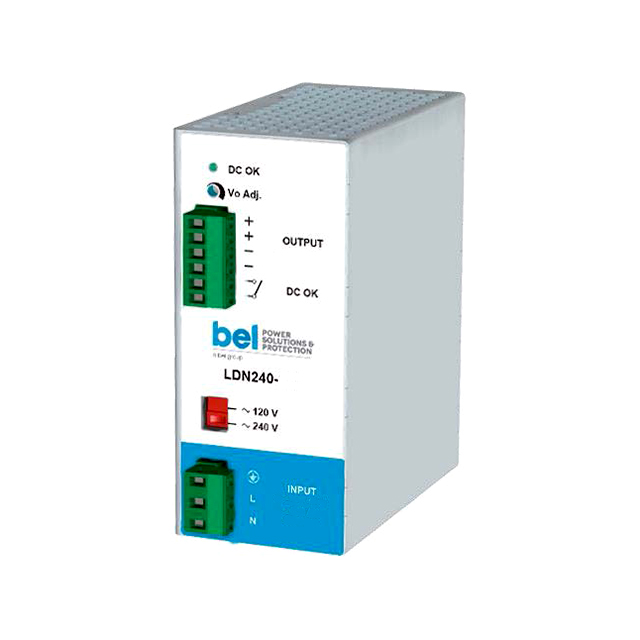

LDN240-12

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 12V 16A 240W 9-PIN

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 12V 16A 240W 9-PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LDN240-12	LDN240 Series

AC Voltage - Input [Max]	264 VAC, 132 VAC	132 - 264 VAC
AC Voltage - Input [Min]	90 VAC, 187 VAC	90 - 187 VAC
Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	16 A	10 - 16 A
Efficiency	84 %	84 - 86 %
Features	Adjustable Output, IP20	Load Sharing, IP20, Adjustable Output
Input Type	AC	AC
Number of Outputs	1	1
Power (Watts)	240 W	240 W
Size / Dimension [x]	117 mm	117 mm
Size / Dimension [x]	4.61 "	4.61 "
Size / Dimension [y]	2.48 in	2.48 in
Size / Dimension [y]	63 mm	63 mm
Size / Dimension [z]	5.51 "	5.51 "
Size / Dimension [z]	140 mm	140 mm
Voltage - Isolation	4.2 kV	4.2 kV
Voltage - Output 1	12 V	12 - 24 V

AC/DC DIN RAIL SUPPLY 24V 240W

Part	Number of Outputs	Power (Watts)	Input Type	Applications	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Current - Output (Max) [Max]	Voltage - Output 1	Features
Bel Power Solutions LDN240-24P	1	240 W	AC	ITE (Commercial)	90 VAC, 187 VAC	132 VAC, 264 VAC	4.2 kV	2.48 in	117 mm	5.51 "	4.61 "	140 mm	63 mm	86 %	10 A	24 V	Adjustable Output, IP20, Load Sharing
Bel Power Solutions LDN240-12	1	240 W	AC	ITE (Commercial)	90 VAC, 187 VAC	132 VAC, 264 VAC	4.2 kV	2.48 in	117 mm	5.51 "	4.61 "	140 mm	63 mm	84 %	16 A	12 V	Adjustable Output, IP20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC POWER SUPPLY SINGLE-OUT 12V 16A 240W 9-PIN
