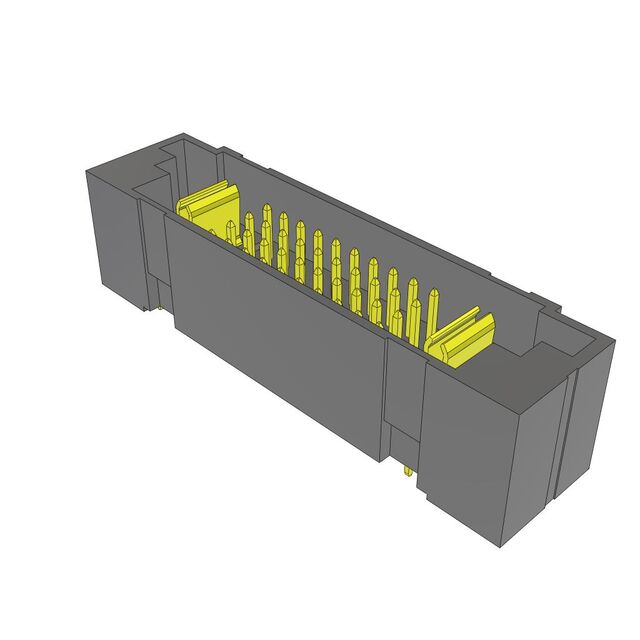

PETC-01-40-01-01-S-VT-LC

Active

Samtec Inc.

.100" POWERSTRIP/40 A SIGNAL/POW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PETC-01-40-01-01-S-VT-LC

Active

Samtec Inc.

.100" POWERSTRIP/40 A SIGNAL/POW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PETC-01-40-01-01-S-VT-LC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	2.35 mm
Contact Length - Post	0.093 in
Contact Material	Copper Alloy
Contact Type	Male Pin, Male Blade
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	0.575 in
Insulation Height	14.6 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions [custom]	40
Number of Positions [custom]	2
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shrouding	Shrouded - 4 Wall
Termination	Solder

PETC-01 Series

Part	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Positions Loaded	Number of Positions	Shrouding	Fastening Type	Features	Termination	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Connector Type	Contact Type	Insulation Height	Insulation Height	Mounting Type	Contact Material	Contact Length - Post	Contact Length - Post	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. PETC-01-12-01-01-L-RA-SD	Gold	10 çin	0.25 çm	Black	All	14	Shrouded - 4 Wall	Friction Lock	Mounting Flange	Solder	Tin	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Header	Male Blade Male Pin	14.5 mm	0.571 in	Through Hole Right Angle	Copper Alloy
Samtec Inc. PETC-01-12-01-01-S-RA-LC	Gold	30 Áin	0.76 Ám	Black	All	14	Shrouded - 4 Wall	Friction Lock		Solder	Tin	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Header	Male Blade Male Pin	14.5 mm	0.571 in	Through Hole Right Angle	Copper Alloy
Samtec Inc. PETC-01-12-01-01-L-RA-LC	Gold	10 çin	0.25 çm	Black	All	14	Shrouded - 4 Wall	Friction Lock		Solder	Tin	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Header	Male Blade Male Pin	14.5 mm	0.571 in	Through Hole Right Angle	Copper Alloy
Samtec Inc. PETC-01-12-01-01-L-VT	Gold	10 çin	0.25 çm	Black	All	14	Shrouded - 4 Wall	Friction Lock		Solder	Tin	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Header	Male Blade Male Pin	14.6 mm	0.575 in	Through Hole	Copper Alloy	2.35 mm	0.093 in
Samtec Inc. PETC-01-12-01-01-S-VT	Gold	30 Áin	0.76 Ám	Black	All	14	Shrouded - 4 Wall	Friction Lock		Solder	Tin	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Header	Male Blade Male Pin	14.6 mm	0.575 in	Through Hole	Copper Alloy	2.35 mm	0.093 in
Samtec Inc. PETC-01-40-01-01-T-VT				Black	All		Shrouded - 4 Wall	Friction Lock		Solder	Tin	-55 °C	105 ░C	Liquid Crystal Polymer (LCP)	Header	Male Blade Male Pin	14.6 mm	0.575 in	Through Hole	Copper Alloy	2.35 mm	0.093 in	40	2
Samtec Inc. PETC-01-40-01-01-S-VT	Gold	30 Áin	0.76 Ám	Black	All		Shrouded - 4 Wall	Friction Lock		Solder	Tin	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Header	Male Blade Male Pin	14.6 mm	0.575 in	Through Hole	Copper Alloy	2.35 mm	0.093 in	40	2
Samtec Inc. PETC-01-40-01-01-S-VT-LC	Gold	30 Áin	0.76 Ám	Black	All		Shrouded - 4 Wall	Friction Lock		Solder	Tin	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Header	Male Blade Male Pin	14.6 mm	0.575 in	Through Hole	Copper Alloy	2.35 mm	0.093 in	40	2
Samtec Inc. PETC-01-40-01-01-L-RA-LC	Gold	10 çin	0.25 çm	Black	All		Shrouded - 4 Wall	Friction Lock		Solder	Tin	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Header	Male Blade Male Pin	14.5 mm	0.571 in	Through Hole Right Angle	Copper Alloy			40	2
Samtec Inc. PETC-01-12-01-01-S-RA-LC-L	Gold	30 Áin	0.76 Ám	Black	All	14	Shrouded - 4 Wall	Friction Lock		Solder	Tin	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Header	Male Blade Male Pin	14.5 mm	0.571 in	Through Hole Right Angle	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.71
		10	$ 14.16
		25	$ 12.61
		50	$ 10.30
		100	$ 9.82

Description

General part information

PETC-01 Series

Connector Header Through Hole 42 (40 + 2 Power) position
