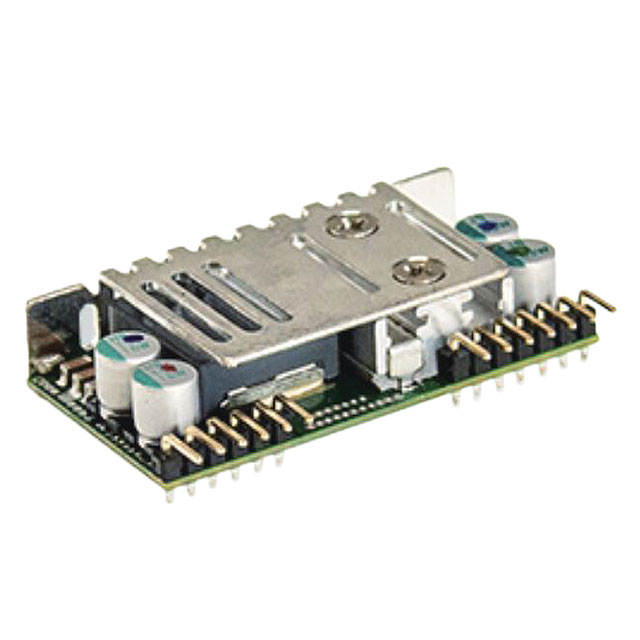

NID100-24
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 24V 101W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NID100-24
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 24V 101W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NID100-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, EAC |
| Current - Output (Max) [Max] | 4.2 A |
| Efficiency | 96 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Package / Case | 13-SIP Module |
| Power (Watts) | 101 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [y] | 0.47 " |
| Size / Dimension [z] | 27.5 mm |
| Size / Dimension [z] | 1.08 " |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 53 V |
| Voltage - Input (Min) [Min] | 30 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.14 | |
| 5 | $ 16.16 | |||
| 10 | $ 15.75 | |||
Description
General part information
NID100 Series
Non-Isolated PoL Module DC DC Converter 1 Output 24V 4.2A 30V - 53V Input
