R75PF1470AA01J

Active

KEMET

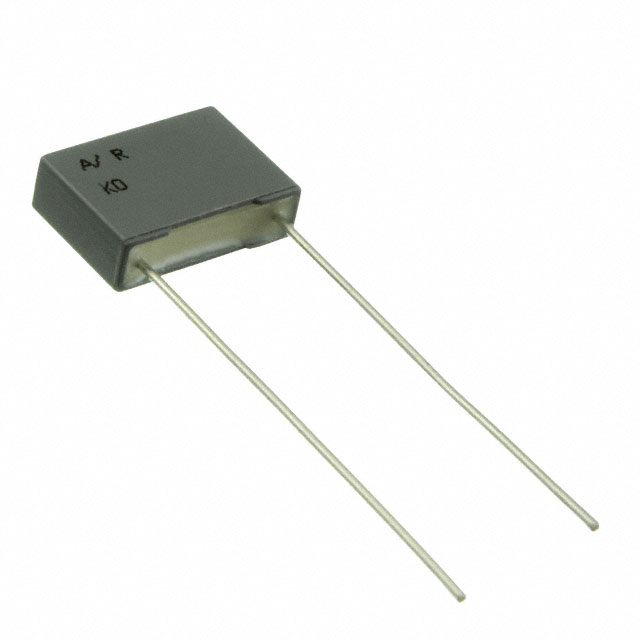

CAP FILM 4700PF 5% 630VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR75PF1470AA00J

R75PF1470AA01J

Active

KEMET

CAP FILM 4700PF 5% 630VDC RADIAL

Deep-Dive with AI

DocumentsR75PF1470AA00J

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R75PF1470AA01J

Applications	Automotive, High Frequency, Switching, High Pulse, DV/DT
Capacitance	4700 pF
Dielectric Material	Metallized, Polypropylene (PP)
Lead Spacing	0.394 in
Lead Spacing	10 mm
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	13 mm
Size / Dimension [x]	0.512 in
Size / Dimension [y]	4 mm
Size / Dimension [y]	0.157 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	250 V

R75PF Series

Part	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Dielectric Material	Mounting Type	Voltage Rating - AC	Tolerance	Capacitance	Package / Case	Termination	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R75PF156050H0J	142.1 mOhms	0.394 in	10 mm	Metallized Polypropylene (PP)	Through Hole	250 V	5 %	5600 pF	Radial	PC Pins	AEC-Q200	-55 °C	125 °C	Automotive High Frequency Switching High Pulse DV/DT	4 mm	13 mm	0.157 in	0.512 in
KEMET R75PF2220AA30J		0.394 in	10 mm	Metallized Polypropylene (PP)	Through Hole	250 V	5 %	0.022 µF	Radial	PC Pins	AEC-Q200	-55 °C	105 ░C	Automotive High Frequency Switching High Pulse DV/DT					12.1 mm	0.476 "
KEMET R75PF218050H3J	61.9 mOhms	0.394 in	10 mm	Metallized Polypropylene (PP)	Through Hole	250 V	5 %	0.018 µF	Radial	PC Pins	AEC-Q200	-55 °C	125 °C	Automotive High Frequency Switching High Pulse DV/DT	5 mm	13 mm	0.197 "	0.512 in			0.437 in	11.1 mm
KEMET R75PF1470AA01J		0.394 in	10 mm	Metallized Polypropylene (PP)	Through Hole	250 V	5 %	4700 pF	Radial	PC Pins	AEC-Q200	-55 °C	105 ░C	Automotive High Frequency Switching High Pulse DV/DT	4 mm	13 mm	0.157 in	0.512 in
KEMET R75PF212050H3J	92.8 mOhms	0.394 in	10 mm	Metallized Polypropylene (PP)	Through Hole	250 V	5 %	0.012 µF	Radial	PC Pins	AEC-Q200	-55 °C	125 °C	Automotive High Frequency Switching High Pulse DV/DT	4 mm	13 mm	0.157 in	0.512 in
KEMET R75PF182050H0J	97 mOhm	0.394 in	10 mm	Metallized Polypropylene (PP)	Through Hole	250 V	5 %		Radial	PC Pins	AEC-Q200	-55 °C	125 °C	Automotive High Frequency Switching High Pulse DV/DT	4 mm	13 mm	0.157 in	0.512 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.46
		10	$ 0.31
		100	$ 0.20
		2000	$ 0.13
		6000	$ 0.12
		10000	$ 0.11
Newark	Each	1000	$ 0.13
		2500	$ 0.11

Description

General part information

R75PF Series

4700 pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial
