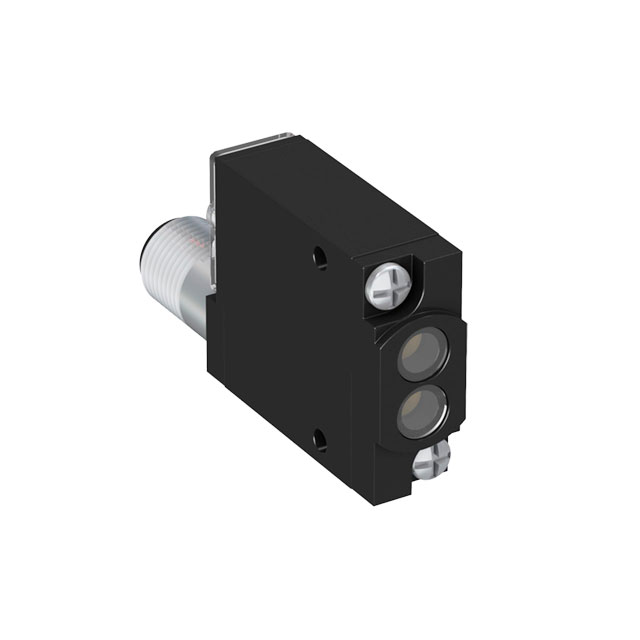

Specification	SM312WQD

Adjustment Type	Adjustable, Potentiometer
Connection Method	Connector
Ingress Protection	12, 3S, IEC IP67, 3, 6, 4, NEMA 1, 4X, 2, IEC, IP67
Light Source	Infrared LED
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Output Configuration	NPN, PNP - Dark-ON, Light-ON
Response Time	1 ms
Sensing Distance	5.118 "
Sensing Method	Diffuse
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

SM312 Series

Part	Ingress Protection	Light Source	Output Configuration	Operating Temperature (Max)	Operating Temperature (Min)	Response Time	Sensing Method	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Connection Method	Adjustment Type	Sensing Distance	Cable Length	Light Source Wavelength (Red)
BANNER ENGINEERING SM312WQD	12 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1	Infrared LED	Light-ON NPN PNP - Dark-ON	70 °C	-20 °C	1 ms	Diffuse	10 VDC	30 VDC	Connector	Adjustable Potentiometer	5.118 "
BANNER ENGINEERING SM312DQDP-68020	12 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1	Infrared LED	Light-ON NPN PNP - Dark-ON	70 °C	-20 °C	1 ms	Diffuse	10 VDC	30 VDC	Connector	Adjustable Potentiometer	14.961 "
BANNER ENGINEERING SM312FV	12 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1	LED	NPN PNP	70 °C	-20 °C	1 ms	Fiber Optic	10 VDC	30 VDC	Cable	Adjustable Potentiometer		78.74 in
BANNER ENGINEERING SM312FVBQD	12 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1	LED	NPN PNP	70 °C	-20 °C	1 ms	Fiber Optic	10 VDC	30 VDC	Connector	Adjustable Potentiometer
BANNER ENGINEERING SM312CV2QD	12 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1	Red LED	Light-ON NPN PNP - Dark-ON	70 °C	-20 °C	1 ms	Convergent	10 VDC	30 VDC	Connector	Adjustable Potentiometer	1.693 "
BANNER ENGINEERING SM312CV	12 12 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Red	Light-ON NPN PNP - Dark-ON	70 °C	-20 °C	1 ms	Convergent	10 VDC	30 VDC	Cable	Adjustable Potentiometer	0.63 "	78.74 in	650 nm
BANNER ENGINEERING SM312LVQD	12 12 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Red	Light-ON NPN PNP - Dark-ON	70 °C	-20 °C	1 ms	NonPolarized Retroreflective	10 VDC	30 VDC	Connector	Adjustable Potentiometer	196.85 "		650 nm
BANNER ENGINEERING SM312LV	12 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1	Red LED	Light-ON NPN PNP - Dark-ON	70 °C	-20 °C	1 ms	NonPolarized Retroreflective	10 VDC	30 VDC	Cable	Adjustable Potentiometer	196.85 "	78.74 in
BANNER ENGINEERING SM312LVMHS	12 12 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Red	Light-ON NPN PNP - Dark-ON	70 °C	-20 °C	300 µs	NonPolarized Retroreflective	10 VDC	30 VDC	Cable	Adjustable Potentiometer	196.85 "	78.74 in	650 nm
BANNER ENGINEERING SM312LVMHS W/50	12 13 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Red	Dark-ON Light-ON Light-ON - Selectable NPN PNP PNP - Dark-ON Selectable	70 °C	-20 °C	300 µs	NonPolarized Retroreflective	10 VDC	30 VDC		Adjustable Potentiometer	196.85 "		650 nm
