3105-1-00-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.

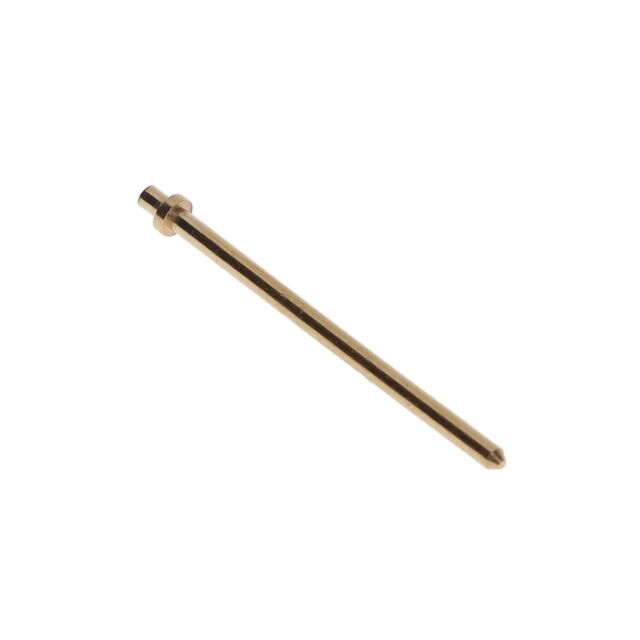

CONN PC PIN CIRC .040DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3105-1-00-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3105-1-00-21-00-00-08-0 |
|---|---|
| Board Thickness | 0.031 in |
| Board Thickness | 0.79 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.77 mm |
| Flange Diameter [diameter] | 0.07 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 19.05 mm |
| Length - Above Flange [x] | 0.75 in |
| Length - Below Flange [x] | 1.3 mm |
| Length - Below Flange [x] | 0.051 in |
| Length - Overall [x] | 20.85 mm |
| Length - Overall [x] | 0.821 in |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.48 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.24 | |||
| 50 | $ 1.21 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.96 | |||
| 1000 | $ 0.82 | |||
| 3000 | $ 0.77 | |||
Description
General part information
3105-1 Series
PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia
