Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 123.82 | |
General part information

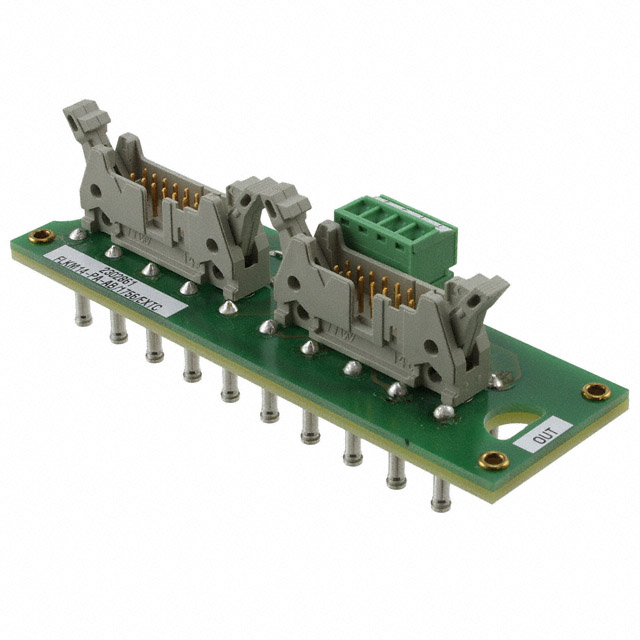

Adapter PLC Control-Logix and PlantScape To Rectangular Connector (2), 14 Pos, 2 Rows
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2302861 | FLKM 14 Series |
|---|---|---|
| - | - | |
| Convert From (Adapter End) | PLC Control-Logix, PlantScape | PLC SLC 500, 14 Pos, PLC MODICON M340, PLC CompactLogix, PLC Control-Logix, PlantScape |
| Convert To (Adapter End) | 14 Pos, 2 Rows | 2 - 14 Pos |
| Convert To (Adapter End) | Rectangular Connector (2) | Rectangular Connector (2), Terminal Blocks, Header, 2 Rows |
| Mounting Type | Board Mounted | Board Mounted, Board Mount |
ROUND SHIELDED CABLE SET 15POS
| Part | Mounting Type | Convert To (Adapter End) | Convert To (Adapter End) | Convert From (Adapter End) |
|---|---|---|---|---|
Phoenix Contact 2302450 | Board Mounted | 2 Rows, 14 Pos | Rectangular Connector (2) | |
Phoenix Contact 2293459 | Board Mounted | 2 Rows, 14 Pos | Rectangular Connector (2) | PLC SLC 500, 14 Pos |
Phoenix Contact 2903208 | Board Mounted | 2 Rows, 14 Pos | Rectangular Connector (2) | PLC MODICON M340 |
Phoenix Contact 2302463 | Board Mount | 2 Rows, Header, Terminal Blocks | PLC CompactLogix | |
Phoenix Contact 2304131 | ||||
Phoenix Contact 2290009 | Board Mounted | 2 Rows, 14 Pos | Rectangular Connector (2) | |
Phoenix Contact 2293475 | Board Mounted | 2 Rows, 14 Pos | Rectangular Connector (2) | PLC SLC 500, 14 Pos |
Phoenix Contact 5604302 | ||||
Phoenix Contact 2302861 | Board Mounted | 2 Rows, 14 Pos | Rectangular Connector (2) | PlantScape, PLC Control-Logix |
Phoenix Contact 2302874 | Board Mounted | 2 Rows, 14 Pos | Rectangular Connector (2) | PlantScape, PLC Control-Logix |
