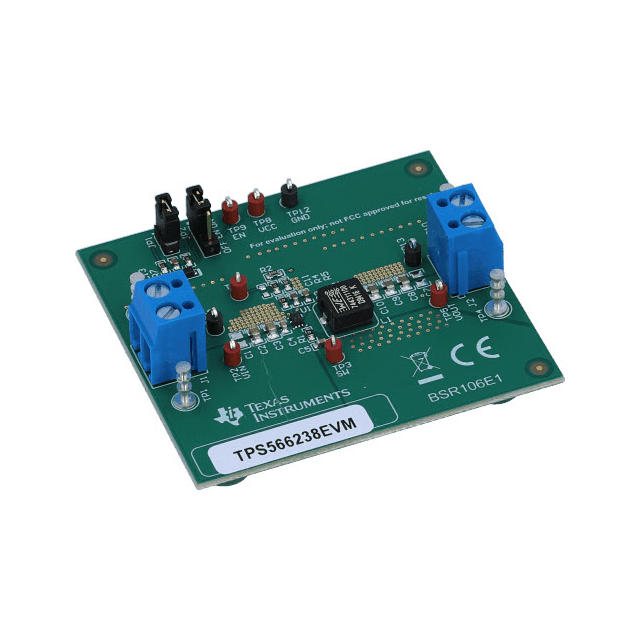

TPS566238EVM
TPS566238 D-CAP3™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS566238EVM |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 6 A |
| Frequency - Switching | 600 kHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | TPS566238 |
| Voltage - Input (Maximum) | 17 V |
| Voltage - Input (Minimum) | 3 V |
| Voltage - Output | 1 V |
