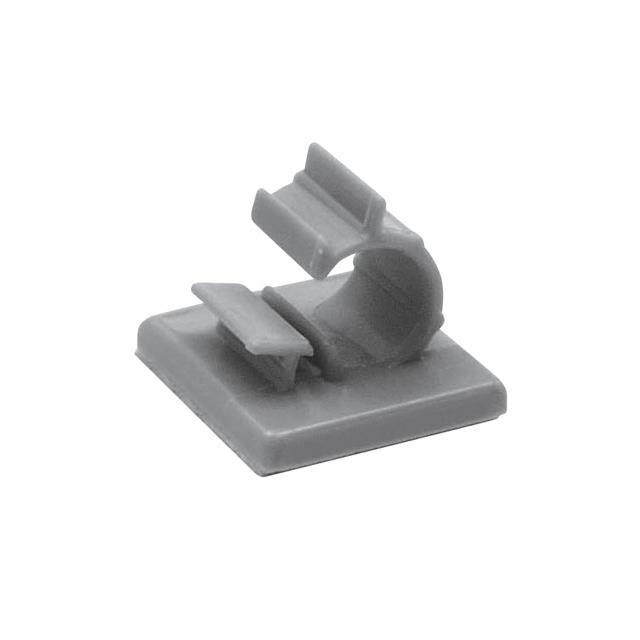

3860V

Active

Heyco Products Corporation

WCA 500-1250 ABV GRAY

Search across all available documentation for this part.

Active

Heyco Products Corporation

WCA 500-1250 ABV GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	3860V

Adhesive	Acrylic Based
Bundle Center to Mounting Center	12.7 mm
Bundle Center to Mounting Center	0.5 in
Color	Gray
Height [z]	0.68 in
Height [z]	17.27 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Adhesive
Type	C-Type, Clip
Type Attributes	Locking, Round
Width [y]	16.26 mm
Width [y]	0.64 in

WCA 500-1250 ABV GRAY

Part	Width [y]	Width [y]	Type Attributes	Height [z]	Height [z]	Material Flammability Rating	Color	Material	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Mounting Type	Adhesive	Type
Heyco Products Corporation 3860V	16.26 mm	0.64 in	Locking, Round	0.68 in	17.27 mm	UL94 V-2	Gray	Polyamide (PA66), Nylon 6/6	12.7 mm	0.5 in	Adhesive	Acrylic Based	C-Type, Clip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, C-Type Gray Adhesive
