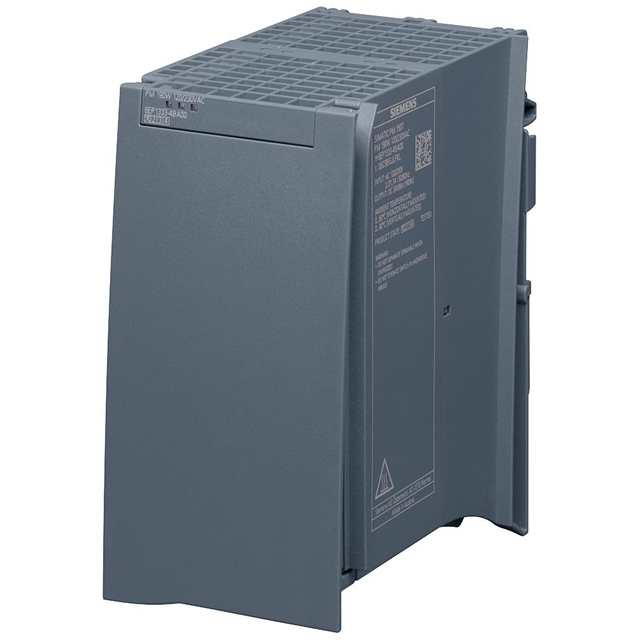

6EP13334BA00
ActiveSiemens
AC/DC DIN RAIL SUPPLY 24V
Deep-Dive with AI
Search across all available documentation for this part.
6EP13334BA00
ActiveSiemens
AC/DC DIN RAIL SUPPLY 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6EP13334BA00 |
|---|---|
| AC Voltage - Input [Max] | 132 VAC, 264 VAC |
| AC Voltage - Input [Min] | 170 VAC, 85 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | cULus, UL, CSA, CE, EAC |
| Current - Output (Max) [Max] | 8 A |
| Efficiency | 90 % |
| Features | Adjustable Output, IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 5.08 in |
| Size / Dimension [x] | 129 mm |
| Size / Dimension [y] | 2.95 in |
| Size / Dimension [y] | 75 mm |
| Size / Dimension [z] | 5.79 in |
| Size / Dimension [z] | 147 mm |
| Standard Number | 60950-1, UL 508 |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 328.41 | |
| 10 | $ 317.09 | |||
| 25 | $ 311.43 | |||
Description
General part information
6EP13334 Series
AC/DC DIN RAIL SUPPLY 24V
Documents
Technical documentation and resources
