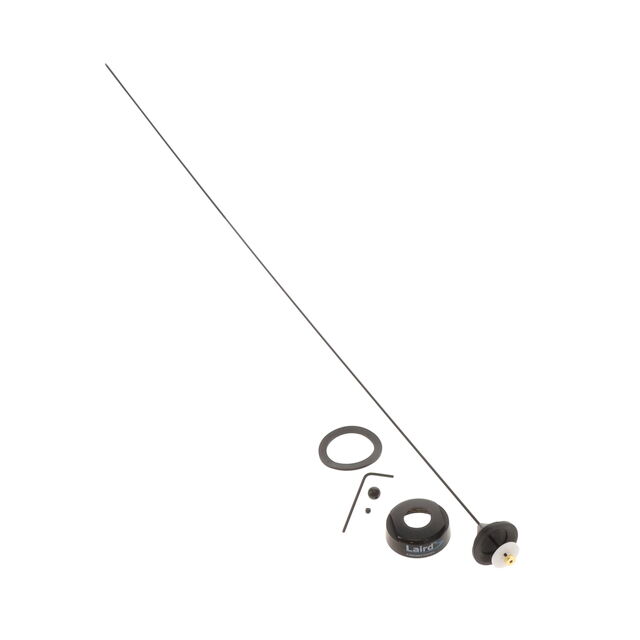

QWFTB120
ActiveTE Connectivity Raychem Cable Protection
WHIP,QW,1/4,118-970MHZ 544,0DBI,BK,GP,
Deep-Dive with AI
Search across all available documentation for this part.
QWFTB120
ActiveTE Connectivity Raychem Cable Protection
WHIP,QW,1/4,118-970MHZ 544,0DBI,BK,GP,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QWFTB120 |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 544 MHz |
| Frequency Group | UHF, VHF |
| Frequency Range [Max] | 970 MHz |
| Frequency Range [Min] | 118 MHz |
| Gain | 0 dBi |
| Height (Max) [Max] | 24 in |
| Height (Max) [Max] | 609.6 mm |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Termination | NMO |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.15 | |
| 10 | $ 16.68 | |||
| 25 | $ 15.99 | |||
| 100 | $ 14.09 | |||
| 250 | $ 13.40 | |||
| 500 | $ 12.53 | |||
Description
General part information
QWFT Series
Whip Antenna, Wide Band, UHF / VHF / Vehicular, External Mount, Stud/Screw/Lug Mount, NMO, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Documents
Technical documentation and resources
