NA1-PK5-PN-J

Active

Panasonic Industrial Automation Sales

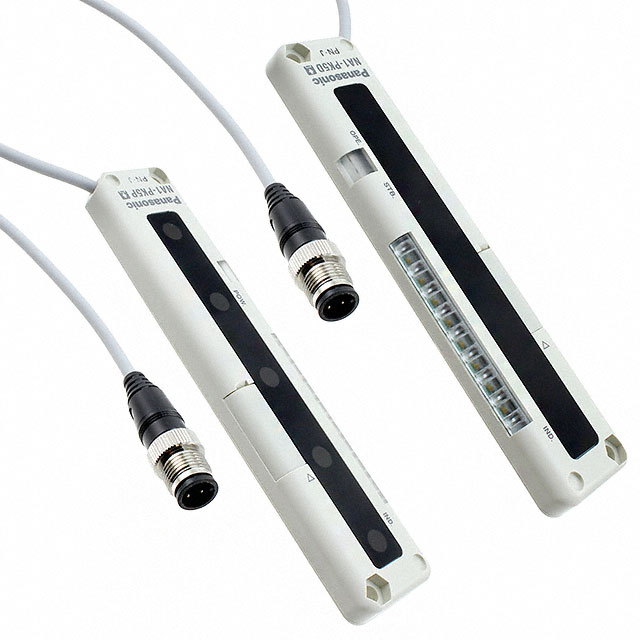

SENSOR CROSS-BEAM 100MM PNP 1.2M

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

SENSOR CROSS-BEAM 100MM PNP 1.2M

Technical Specifications

Parameters and characteristics for this part

Specification	NA1-PK5-PN-J

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP62
Light Source	Infrared
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	PNP - Open Collector
Response Time	10 ms
Sensing Distance	3.937 in
Sensing Distance	100 mm
Sensing Method	Through-Beam
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

Part	Response Time	Output Configuration	Ingress Protection	Cable Length	Cable Length	Light Source	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Sensing Method	Connection Method	Sensing Distance	Sensing Distance	Voltage - Supply [Min]	Voltage - Supply [Max]
Panasonic Industrial Automation Sales NA1-PK5-J	10 ms	NPN - Open Collector	IP62	78.74 in	2 m	Infrared	55 °C	-10 °C	Through-Beam	Cable	3.937 in	100 mm	12 V	24 V
Panasonic Industrial Automation Sales NA1-PK5-PN-J	10 ms	PNP - Open Collector	IP62	78.74 in	2 m	Infrared	55 °C	-10 °C	Through-Beam	Cable	3.937 in	100 mm	12 V	24 V
Panasonic Industrial Automation Sales NA1-PK5-PN	10 ms	PNP - Open Collector	IP62	78.74 in	2 m	Infrared	55 °C	-10 °C	Through-Beam	Cable	3.937 in	100 mm	12 V	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 3.937" (100mm) PNP - Open Collector
