LTC6702IDC#TRMPBF
ActiveTINY MICROPOWER, LOW VOLTAGE DUAL COMPARATORS
Deep-Dive with AI
Search across all available documentation for this part.
LTC6702IDC#TRMPBF
ActiveTINY MICROPOWER, LOW VOLTAGE DUAL COMPARATORS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTC6702IDC#TRMPBF |
|---|---|
| CMRR, PSRR (Typ) | 70 dB, 65 dB |
| Current - Quiescent (Max) [Max] | 32 µA |
| Hysteresis | 7.2 mV |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Rail-to-Rail, Push-Pull, TTL, CMOS |

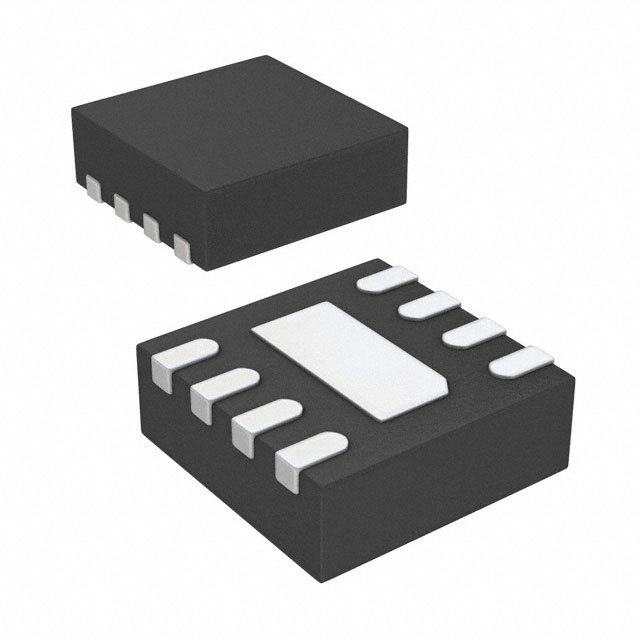

| Package / Case | 8-WFDFN Exposed Pad |
| Propagation Delay (Max) [Max] | 450 ns |
| Supplier Device Package | 8-DFN (2x2) |
| Type | General Purpose |
| Voltage - Input Offset (Max) [Max] | 3.5 mV |
| Voltage - Supply, Single/Dual (±) [Max] | 5.5 V |
| Voltage - Supply, Single/Dual (±) [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.95 | |
| 10 | $ 3.30 | |||
| 25 | $ 2.87 | |||
| 100 | $ 2.39 | |||
| 250 | $ 2.15 | |||
| Digi-Reel® | 1 | $ 4.95 | ||
| 10 | $ 3.30 | |||
| 25 | $ 2.87 | |||
| 100 | $ 2.39 | |||
| 250 | $ 2.15 | |||
| Tape & Reel (TR) | 500 | $ 2.01 | ||
| 1000 | $ 1.89 | |||
| 1500 | $ 1.83 | |||
| 2500 | $ 1.77 | |||
| 3500 | $ 1.73 | |||
| 5000 | $ 1.70 | |||
Description
General part information
LTC6702 Series
The LTC6702 is an extremely small dual comparator designed to maximize battery life while providing both speed and low voltage operation in applications where board space is a premium.These comparators operate on supplies between 1.7V and 5.5V, and have a maximum guaranteed propagation delay of 500ns while drawing only 30µA maximum quiescent current. Internal hysteresis desensitizes the LTC6702 to input noise and makes it easy to use, even with slow moving signals. CMOS inputs allow the use of large source impedances.The LTC6702 is available in the 8-pin SOT-23 and the tiny 2mm × 2mm DFN package.ApplicationsBattery Powered SystemsWindow ComparatorsThreshold Detectors/DiscriminatorsClock RegenerationAutomotive Sensing and Controls
