1771 BK005

Active

ALPHA WIRE

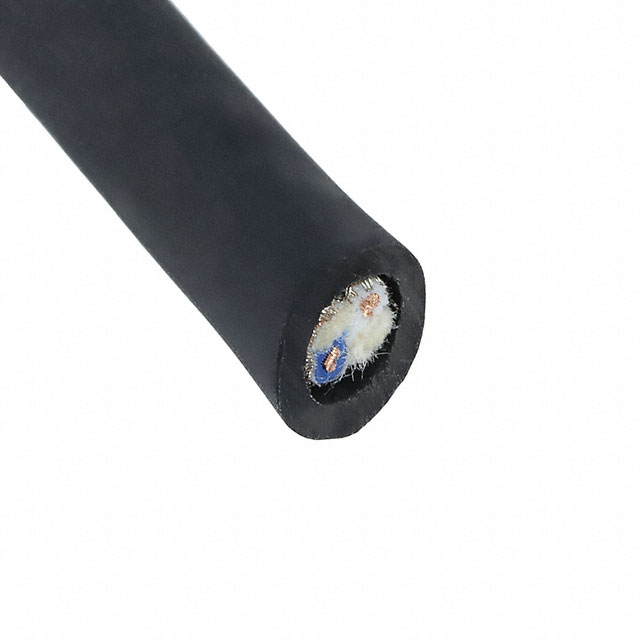

MULTICONDUCTOR UNSHIELDED CABLE, 2, 60 X 0.079MM, 100 FT, 30.5 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR UNSHIELDED CABLE, 2, 60 X 0.079MM, 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1771 BK005	1771 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polyethylene (PE)	Polyethylene (PE)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	40	40
Conductor Strand [custom]	60	60
Jacket (Insulation) Diameter [diameter]	0.243 "	0.243 "
Jacket (Insulation) Diameter [diameter]	6.17 mm	6.17 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in	0.04 in
Jacket (Insulation) Thickness	1.016 mm	1.016 mm
Jacket Color	Black	Orange, Black
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	2	2
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	95 %	95 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	23 AWG	23 AWG

CABLE 2COND 23AWG ORG SHLD

Part	Cable Type	Jacket (Insulation) Material	Conductor Insulation	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Shield Coverage	Conductor Material	Shield Type	Wire Gauge	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length	Length	Length [x]	Length [x]
ALPHA WIRE 1771 OR001	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	600 V	-20 C	60 °C	40	60	Copper, Tinned	0.04 in	1.016 mm	2	95 %	Copper, Bare	Braid	23 AWG	Communication, Control	0.243 "	6.17 mm	Orange	1000 ft	304.8 m
ALPHA WIRE 1771 BK005	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	600 V	-20 C	60 °C	40	60	Copper, Tinned	0.04 in	1.016 mm	2	95 %	Copper, Bare	Braid	23 AWG	Communication, Control	0.243 "	6.17 mm	Black			30.5 m	100 ft
ALPHA WIRE 1771 OR005	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	600 V	-20 C	60 °C	40	60	Copper, Tinned	0.04 in	1.016 mm	2	95 %	Copper, Bare	Braid	23 AWG	Communication, Control	0.243 "	6.17 mm	Orange			30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Black 23 AWG Braid 100.0' (30.5m)
