1771 OR001

Active

ALPHA WIRE

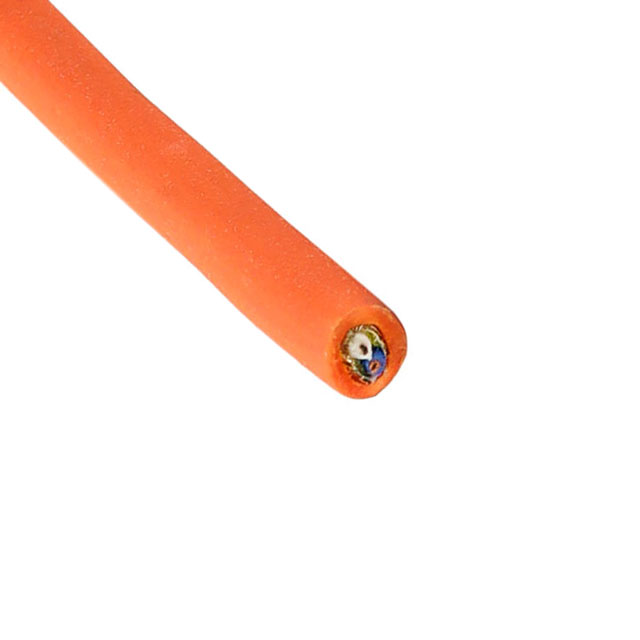

CABLE 2COND 23AWG ORG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 23AWG ORG SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1771 OR001	1771 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polyethylene (PE)	Polyethylene (PE)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	40	40
Conductor Strand [custom]	60	60
Jacket (Insulation) Diameter [diameter]	0.243 "	0.243 "
Jacket (Insulation) Diameter [diameter]	6.17 mm	6.17 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in	0.04 in
Jacket (Insulation) Thickness	1.016 mm	1.016 mm
Jacket Color	Orange	Orange, Black
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	2	2
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	95 %	95 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	23 AWG	23 AWG

CABLE 2COND 23AWG ORG SHLD

Part	Cable Type	Jacket (Insulation) Material	Conductor Insulation	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Shield Coverage	Conductor Material	Shield Type	Wire Gauge	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length	Length	Length [x]	Length [x]
ALPHA WIRE 1771 OR001	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	600 V	-20 C	60 °C	40	60	Copper, Tinned	0.04 in	1.016 mm	2	95 %	Copper, Bare	Braid	23 AWG	Communication, Control	0.243 "	6.17 mm	Orange	1000 ft	304.8 m
ALPHA WIRE 1771 BK005	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	600 V	-20 C	60 °C	40	60	Copper, Tinned	0.04 in	1.016 mm	2	95 %	Copper, Bare	Braid	23 AWG	Communication, Control	0.243 "	6.17 mm	Black			30.5 m	100 ft
ALPHA WIRE 1771 OR005	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	600 V	-20 C	60 °C	40	60	Copper, Tinned	0.04 in	1.016 mm	2	95 %	Copper, Bare	Braid	23 AWG	Communication, Control	0.243 "	6.17 mm	Orange			30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.21

General part information

2 Conductor Multi-Conductor Cable Orange 23 AWG Braid 1000.0' (304.8m)
