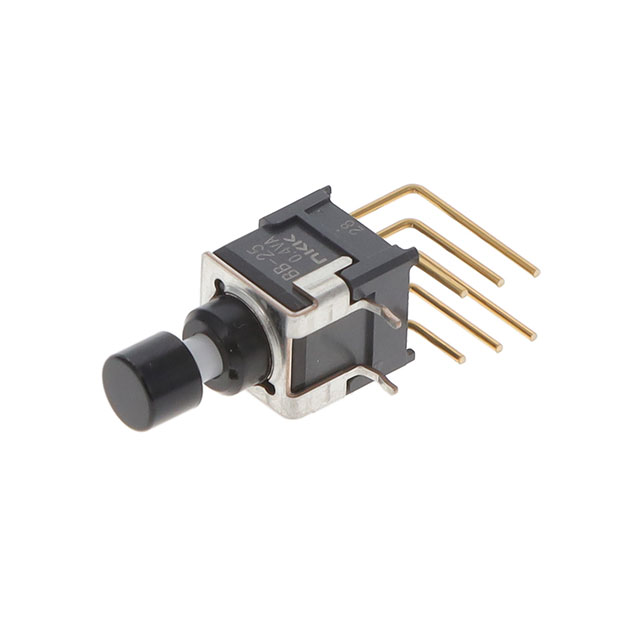

BB25AV-HA

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Specification	BB25AV-HA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Antistatic
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Voltage Rating - DC	Color - Actuator/Cap	Electrical Life	Mounting Type	Type	Features	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Circuit	Actuator Marking	Switch Function	Voltage Rating - AC	Actuator Type
NKK Switches BB25AV-HA	28 V	Black	50000 Cycles	Right Angle Through Hole Vertical	Standard	Antistatic	PC Pin	-30 ░C	85 °C	0.4 VA	DPDT	No Marking	On-Mom	28 V	Button Round
NKK Switches BB25AV-FB	28 V	White	50000 Cycles	Right Angle Through Hole Vertical	Standard	Antistatic	PC Pin	-30 ░C	85 °C	0.4 VA	DPDT	No Marking	On-Mom	28 V	Button Round
NKK Switches BB25AV-FA	28 V	Black	50000 Cycles	Right Angle Through Hole Vertical	Standard	Antistatic	PC Pin	-30 ░C	85 °C	0.4 VA	DPDT	No Marking	On-Mom	28 V	Button Round
NKK Switches BB25AV-FC	28 V	Red	50000 Cycles	Right Angle Through Hole Vertical	Standard	Antistatic	PC Pin	-30 ░C	85 °C	0.4 VA	DPDT	No Marking	On-Mom	28 V	Button Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Through Hole, Right Angle, Vertical
