AP1184K5-18L-13

Unknown

Diodes Inc

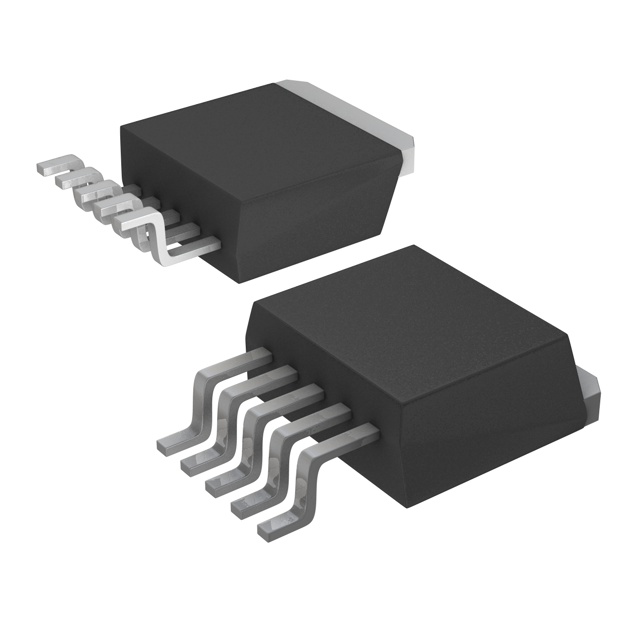

FIXED POSITIVE LDO REGULATOR, 1.8V, 0.85V DROPOUT, BIPOLAR, PSSO5, ROHS COMPLIANT, TO-263, 5 PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AP1184K5-18L-13

Unknown

Diodes Inc

FIXED POSITIVE LDO REGULATOR, 1.8V, 0.85V DROPOUT, BIPOLAR, PSSO5, ROHS COMPLIANT, TO-263, 5 PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP1184K5-18L-13

Current - Output	4 A
Current - Supply (Max) [Max]	70 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-263-6, TO-263BA, D2PAK (5 Leads + Tab)
Protection Features	Over Current, Over Temperature
PSRR	70 dB
Supplier Device Package	TO-263-5
Voltage - Input (Max) [Max]	16 V
Voltage - Output (Min/Fixed)	1.8 V
Voltage Dropout (Max) [Max]	0.85 V

AP1184 Series

Part	Voltage Dropout (Max) [Max]	Output Type	Package / Case	Current - Output	Operating Temperature [Max]	PSRR	Supplier Device Package	Number of Regulators	Voltage - Input (Max) [Max]	Protection Features	Mounting Type	Output Configuration	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Output Type
Diodes Inc AP1184T5-25L-U	0.85 V	1.81 mOhm	TO-220-5	4 A	125 ¯C	70 dB	TO-220-5	1	16 V	Over Current Over Temperature	Through Hole	Positive	70 mA	2.5 V
Diodes Inc AP1184K5-18L-U	0.85 V	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	4 A	125 ¯C	70 dB	TO-263-5	1	16 V	Over Current Over Temperature	Surface Mount	Positive	70 mA	1.8 V
Diodes Inc AP1184K5-L-U	0.85 V		D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	4 A	125 ¯C	70 dB	TO-263-5	1	16 V	Over Current Over Temperature	Surface Mount	Positive	70 mA	1.25 V	15.5 V	Adjustable
Diodes Inc AP1184T5-33L-U	0.85 V	1.81 mOhm	TO-220-5	4 A	125 ¯C	70 dB	TO-220-5	1	16 V	Over Current Over Temperature	Through Hole	Positive	70 mA	3.3 V
Diodes Inc AP1184T5-50L-U	0.85 V	1.81 mOhm	TO-220-5	4 A	125 ¯C	70 dB	TO-220-5	1	16 V	Over Current Over Temperature	Through Hole	Positive	70 mA	5 V
Diodes Inc AP1184K5-15L-U	0.85 V	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	4 A	125 ¯C	70 dB	TO-263-5	1	16 V	Over Current Over Temperature	Surface Mount	Positive	70 mA	1.5 V
Diodes Inc AP1184K5-15L-13	0.85 V	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	4 A	125 ¯C	70 dB	TO-263-5	1	16 V	Over Current Over Temperature	Surface Mount	Positive	70 mA	1.5 V
Diodes Inc AP1184K5-18L-13	0.85 V	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	4 A	125 ¯C	70 dB	TO-263-5	1	16 V	Over Current Over Temperature	Surface Mount	Positive	70 mA	1.8 V
Diodes Inc AP1184T5-18L-U	0.85 V	1.81 mOhm	TO-220-5	4 A	125 ¯C	70 dB	TO-220-5	1	16 V	Over Current Over Temperature	Through Hole	Positive	70 mA	1.8 V
Diodes Inc AP1184K5-25L-U	0.85 V	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	4 A	125 ¯C	70 dB	TO-263-5	1	16 V	Over Current Over Temperature	Surface Mount	Positive	70 mA	2.5 V
