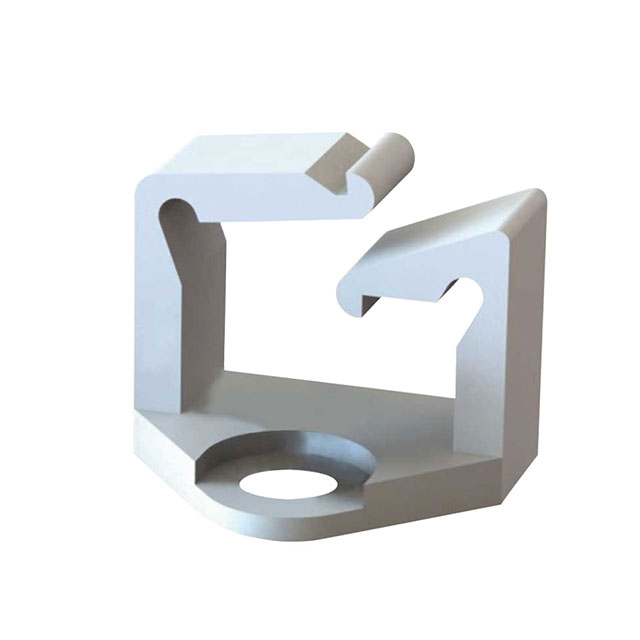

LWS-SR-4-01

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.5 MM, 5.6 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.5 MM, 5.6 MM

Technical Specifications

Parameters and characteristics for this part

Specification	LWS-SR-4-01

Color	Natural
Height [z]	33.27 mm
Height [z]	1.31 in
Length [x]	15.5 mm
Length [x]	0.61 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fastener
Opening Size [x]	11.13 mm
Opening Size [x]	0.438 in
Opening Size [z]	25.4 mm
Opening Size [z]	1 in
Panel Hole Size [Max]	0.146 in
Panel Hole Size [Max]	3.71 mm
Panel Hole Size [Min]	3.61 mm
Panel Hole Size [Min]	0.142 in
Panel Thickness [Max]	0.219 "
Panel Thickness [Max]	5.56 mm
Panel Thickness [Min]	0.01 "
Panel Thickness [Min]	0.25 mm
Screw Size	#6, SR-35XX Series Rivet
Type	Clip, Wire Saddle
Type Attributes	Locking
Width	5.56 mm
Width [x]	0.219 in

Part	Material	Color	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Height [z]	Height [z]	Opening Size [y]	Opening Size [x]	Opening Size [y]	Opening Size [x]	Mounting Type	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Max]	Width [x]	Width	Type Attributes	Material Flammability Rating	Type	Length [x]	Length [x]	Screw Size	Opening Size [z]	Opening Size [z]
Essentra Access Solutions LWS-SR-2-01	Polyamide (PA66) Nylon 6/6	Natural	0.219 "	0.01 "	5.56 mm	0.25 mm	16.51 mm	0.65 "	8.64 mm	0.438 in	0.34 in	11.13 mm	Fastener	3.61 mm	0.146 in	0.142 in	3.71 mm	0.219 in	5.56 mm	Locking	UL94 V-2	Clip Wire Saddle	15.5 mm	0.61 in	#6 SR-35XX Series Rivet
Essentra Access Solutions LWS-SR-4-01	Polyamide (PA66) Nylon 6/6	Natural	0.219 "	0.01 "	5.56 mm	0.25 mm	33.27 mm	1.31 in		0.438 in		11.13 mm	Fastener	3.61 mm	0.146 in	0.142 in	3.71 mm	0.219 in	5.56 mm	Locking	UL94 V-2	Clip Wire Saddle	15.5 mm	0.61 in	#6 SR-35XX Series Rivet	25.4 mm	1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.28

General part information

Cable Clip, Wire Saddle Natural Fastener 0.438" L x 1.000" H (11.13mm x 25.40mm)
