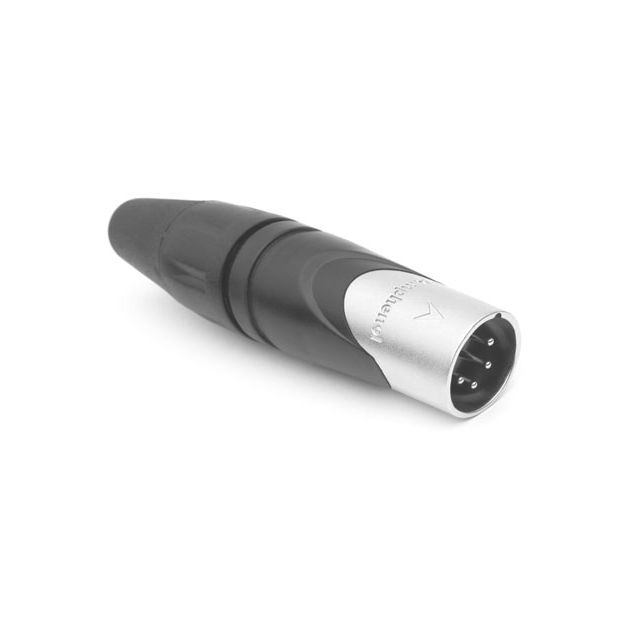

AX4M BULK

Active

Amphenol Sine Systems Corp

METAL XLR PLUG STR CORD 4 PIN BU

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

METAL XLR PLUG STR CORD 4 PIN BU

Technical Specifications

Parameters and characteristics for this part

Specification	AX4M BULK

Applications	Audio
Backshell Material, Plating	Polyphenylene Ether (PPE), Polystyrene (PS)
Cable Opening [Max] [diameter]	7.98 mm
Cable Opening [Max] [diameter]	0.314 in
Cable Opening [Min] [diameter]	0.118 in
Cable Opening [Min] [diameter]	3 mm
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Latch Holder
Features	Cable Clamp, Backshell
Ingress Protection	IP40
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Unshielded

Part	Shell Size - Insert	Features	Primary Material	Material Flammability Rating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Shell Material	Shell Finish	Color	Ingress Protection	Mounting Type	Insert Material	Fastening Type	Orientation	Contact Finish - Mating	Connector Type	Number of Positions	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Contact Material	Shielding	Current Rating (Amps)
Amphenol Sine Systems Corp AX4M BULK	XLR	Backshell Cable Clamp	Metal	UL94 V-0	0.118 in	7.98 mm	0.314 in	3 mm	Zinc Die Cast	Nickel	Black Silver	IP40	Free Hanging (In-Line)	Glass Filled Nylon 6/6 Polyamide (PA66)	Latch Holder	Keyed	Silver	Male Pins Receptacle	4	Audio	-25 °C	75 ░C	Polyphenylene Ether (PPE) Polystyrene (PS)	Brass	Unshielded	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	400	$ 4.05

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
