S10B-PUDSS-1

Active

JST Sales America Inc.

CONN HEADER R/A 10POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 10POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	S10B-PUDSS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Termination	Insulation Color	Number of Rows	Contact Finish - Post	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Fastening Type	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Features	Mounting Type	Contact Shape	Connector Type	Shrouding	Style	Insulation Material	Insulation Height	Insulation Height	Number of Positions	Number of Positions Loaded	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating
JST Sales America Inc. S10B-PUDSS-1	Solder	Natural	2	Tin	Copper Alloy	-25 °C	85 °C	Male Pin	Latch Holder	0.118 in	3 mm	3 A	Board Guide	Through Hole Right Angle	Square	Header	Shrouded - 4 Wall	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6 Glass Filled	0.335 "	8.51 mm	10	All	UL94 V-0	0.079 in	2 mm	0.079 in	2 mm	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

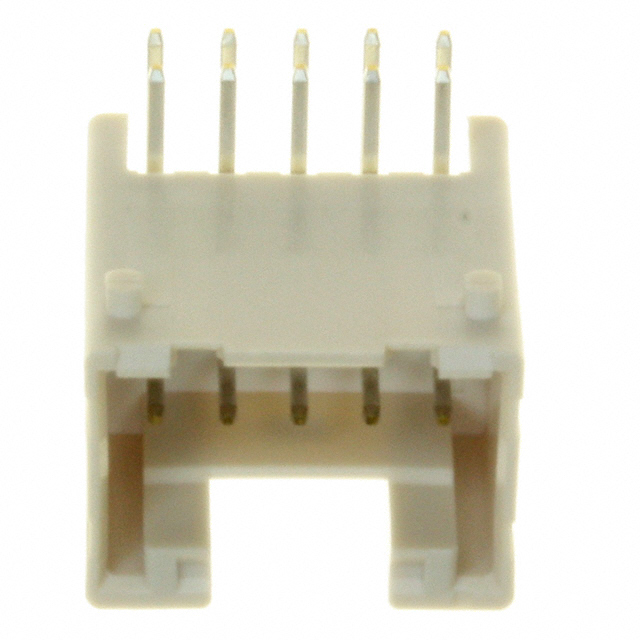

Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)
