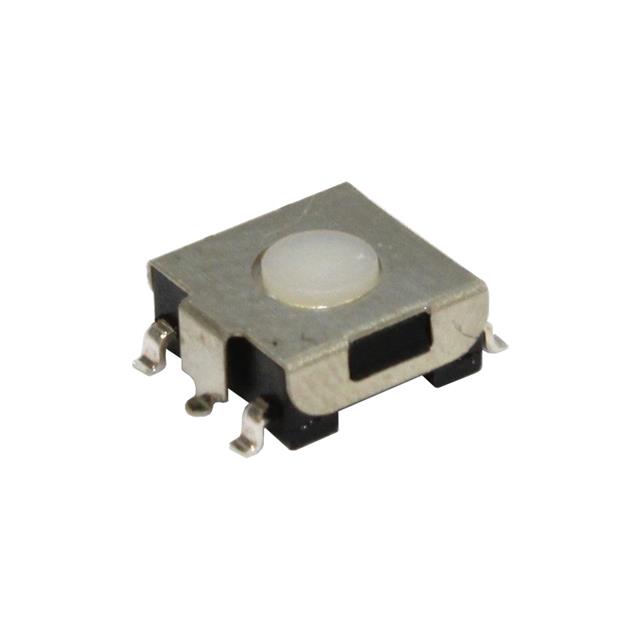

CS1109A2.6

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CS1109A2.6

Actuator Height off PCB, Vertical [z]	2.6 mm
Actuator Material	Polyamide (PA46), Nylon 4/6
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

Part	Actuator Orientation	Switch Travel	Switch Function	Illumination	Mounting Type	Actuator Material	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Outline [y]	Outline [x]	Circuit
CIT Relay and Switch CS1109A2.6	Top Actuated	0.25 mm	Off-Mom	Non-Illuminated	Surface Mount	Nylon 4/6 Polyamide (PA46)	2.6 mm	0.05 A 50 VDC	Standard	85 °C	-40 °C	Gull Wing	6.2 mm	6.2 mm	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
