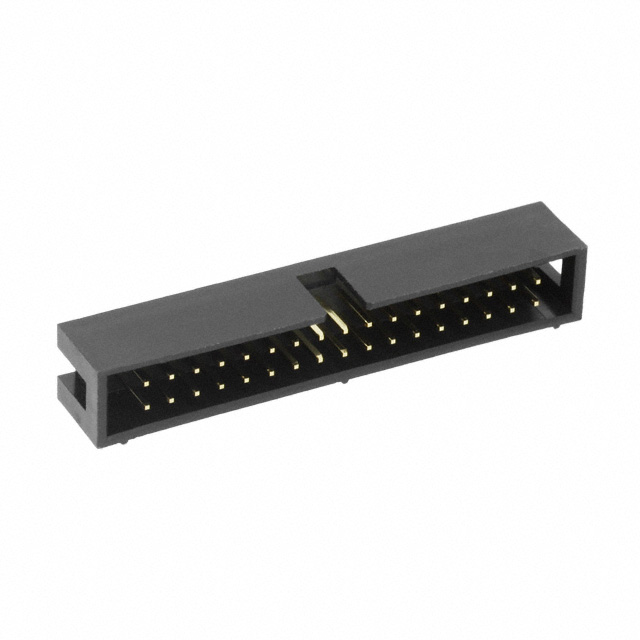

30334-6002HB

Obsolete

3M (TC)

CONN SHROUDED HEADER (4 SIDES) HDR 34 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BOX

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN SHROUDED HEADER (4 SIDES) HDR 34 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BOX

Technical Specifications

Parameters and characteristics for this part

Specification	30334-6002HB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.366 in
Insulation Height	9.3 mm
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

Part	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post	Contact Type	Number of Positions	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Rows	Fastening Type	Mounting Type	Contact Finish - Post	Features	Contact Shape	Number of Positions Loaded	Insulation Color	Contact Length - Mating	Contact Length - Mating	Termination	Contact Material	Contact Finish - Mating	Style	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Shrouding	Contact Finish Thickness - Mating	Insulation Material
3M (TC) 30334-6002HB	0.1 in	2.54 mm	0.11 in	2.79 mm	Male Pin	34	UL94 V-0	105 ░C	-55 °C	Header	2	Push-Pull	Through Hole	Gold	Keying Slot	Square	All	Black	6 mm	0.236 in	Solder	Brass	Gold	Board to Board Cable	Flash	2.54 mm	0.1 in	0.366 in	9.3 mm	Shrouded - 4 Wall	Flash	Glass Filled Polybutylene Terephthalate (PBT) Polyester

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 34 position 0.100" (2.54mm)
