ASMF4L26CA-HF

Active

Comchip Technology

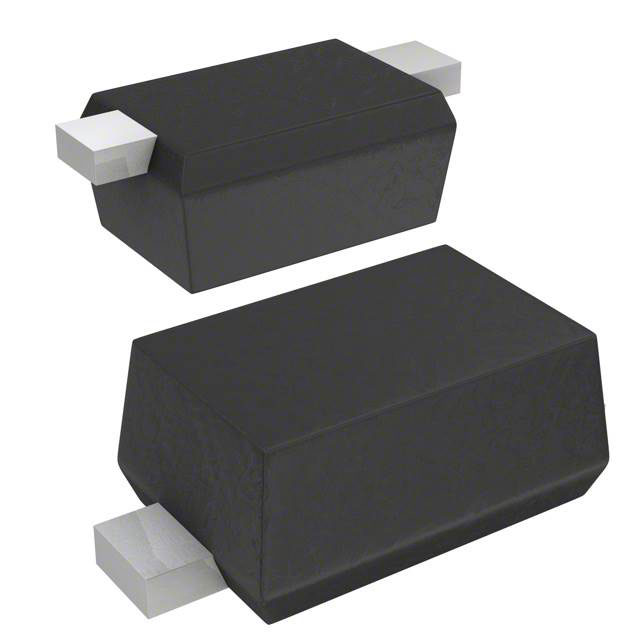

TVS DIODE 26VWM 42.1VC SOD123FL

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 26VWM 42.1VC SOD123FL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ASMF4L26CA-HF	ASMF4 Series

Bidirectional Channels [custom]	1	1
Current - Peak Pulse (10/1000µs)	-	6.9 A
Grade	Automotive	Automotive
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	SOD-123F	SOD-123F
Power - Peak Pulse	400 W	400 W
Power Line Protection	False	False
Qualification	AEC-Q101	AEC-Q101
Supplier Device Package	SOD-123FL	SOD-123FL
Type	Zener	Zener
Voltage - Breakdown (Min) [Min]	28.9 V	28.9 - 40 V
Voltage - Clamping (Max) @ Ipp [Max]	42.1 V	42.1 - 58.1 V
Voltage - Reverse Standoff (Typ)	26 V	26 - 36 V

TVS DIODE 26VWM 42.1VC SOD123FL

Part	Power Line Protection	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Qualification	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp [Max]	Type	Bidirectional Channels [custom]	Package / Case	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Peak Pulse (10/1000µs)
Comchip Technology ASMF4L26CA-HF		SOD-123FL	26 V	AEC-Q101	28.9 V	400 W	42.1 V	Zener	1	SOD-123F	Automotive	-55 °C	150 °C	Surface Mount
Comchip Technology ASMF4L36CA-HF		SOD-123FL	36 V	AEC-Q101	40 V	400 W	58.1 V	Zener	1	SOD-123F	Automotive	-55 °C	150 °C	Surface Mount	6.9 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

42.1V Clamp 9.5A Ipp Tvs Diode Surface Mount SOD-123FL

Technical documentation and resources

No documents available
