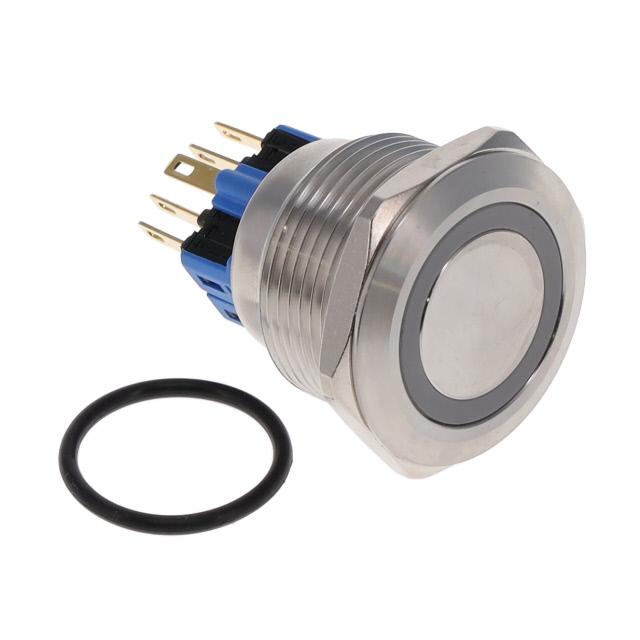

PV9F2T0SS-3H3

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; SPST-NO + SPST-NC; 2A/48VDC

Deep-Dive with AI

Search across all available documentation for this part.

PV9F2T0SS-3H3

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; SPST-NO + SPST-NC; 2A/48VDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PV9F2T0SS-3H3

Actuator Type	Flush, Button, Round
Circuit	DPST-NO/NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	Blue/Red, LED
Illumination Voltage (Nominal)	6 V
Ingress Protection	IP66
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	28 mm
Switch Function	On-Off, Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

PV9F2 Series

Part	Current Rating (Amps)	Mounting Type	Electrical Life	Switch Function	Type	Mechanical Life	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Voltage Rating - DC	Circuit	Termination Style	Termination Style	Termination Style	Ingress Protection	Actuator Type	Color - Actuator/Cap	Illumination Type, Color	Actuator Marking
E-Switch PV9F2U0SS-3L1	2 A	Panel Mount Front	50000 Cycles	Off-On On-Off	Anti-Vandal Illuminated	1000000 Cycles	1.8 VDC 2.8 VDC	55 °C	-20 C	28 mm	Blue/Orange	LED	48 V	4PST-2NO/2NC	0.11 in	Quick Connect Solder	2.8 mm	IP66	Button Flush Round	Silver
E-Switch PV9F2U0SS-331	2 A	Panel Mount Front	50000 Cycles	Off-On On-Off	Anti-Vandal Illuminated	1000000 Cycles	2.8 VDC	55 °C	-20 C	28 mm			48 V	4PST-2NO/2NC	0.11 in	Quick Connect Solder	2.8 mm	IP66	Button Flush Round	Silver	Green LED	No Marking
E-Switch PV9F2T0SS-3H3	2 A	Panel Mount Front	50000 Cycles	Off-On On-Off	Anti-Vandal Illuminated	1000000 Cycles	6 V	55 °C	-20 C	28 mm			48 V	DPST-NO/NC	0.11 in	Quick Connect Solder	2.8 mm	IP66	Button Flush Round	Silver	Blue/Red LED
E-Switch PV9F2V0SS-341	2 A	Panel Mount Front	50000 Cycles	Off-Mom On-Mom	Anti-Vandal Illuminated	1000000 Cycles	2.8 VDC	55 °C	-20 C	28 mm			48 V	4PST-2NO/2NC	0.11 in	Quick Connect Solder	2.8 mm	IP66	Button Flush Round	Silver	Blue LED	No Marking
E-Switch PV9F2U0SS-3G5	2 A	Panel Mount Snap-In	50000 Cycles	Off-On On-Off	Anti-Vandal Illuminated	1000000 Cycles	24 V	55 °C	-20 C	28 mm			48 V	4PST-2NO/2NC	0.11 in	Quick Connect Solder	2.8 mm	IP66	Button Flush Round	Silver	Green/Red LED
E-Switch PV9F2V011-3G5-PTE	2 A	Panel Mount Front	50000 Cycles	Off-Mom On-Mom	Anti-Vandal Illuminated	1000000 Cycles	24 V	55 °C	-20 C	28 mm			48 V	4PST-2NO/2NC	0.11 in	Quick Connect Solder	2.8 mm	IP66	Button Flush Round	Black	Green/Red LED	No Marking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.29
		10	$ 31.21
		30	$ 29.76
		50	$ 27.76
		100	$ 26.67
		250	$ 24.86
TME	N/A	10	$ 42.32

Description

General part information

PV9F2 Series

Pushbutton Switch DPST-NO/NC Anti-Vandal, Illuminated Panel Mount, Front
