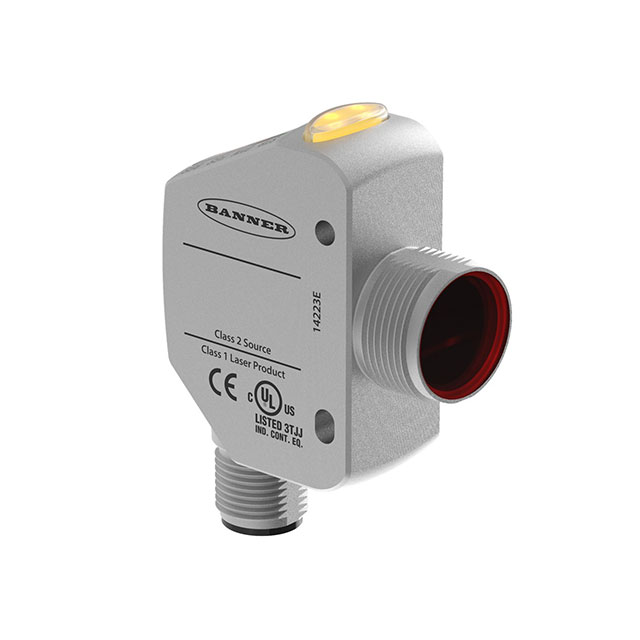

Q4XTILAF300-Q8

Active

BANNER ENGINEERING

LASER SENSOR, 300MM, CURRENT, 30VDC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LASER SENSOR, 300MM, CURRENT, 30VDC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	Q4XTILAF300-Q8

Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Sensing Distance [Max]	11.81 "
Sensing Distance [Max]	300 mm
Sensing Distance [Min]	30 mm
Sensing Distance [Min]	0.98 "
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Output Type	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]
BANNER ENGINEERING Q4XTILAF500-Q8	-10 °C	50 °C	Analog	500 mm	0.98 "	30 mm	19.69 in	12 V	30 VDC
BANNER ENGINEERING Q4XTILAF300-Q8	-10 °C	50 °C		300 mm	0.98 "	30 mm	11.81 "	10 VDC	30 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 571.00
Newark	Each	1	$ 821.14

General part information

Optical Sensor 0.98" ~ 11.81" (3 ~ 30cm) Output
