929951-00

Active

3M (TC)

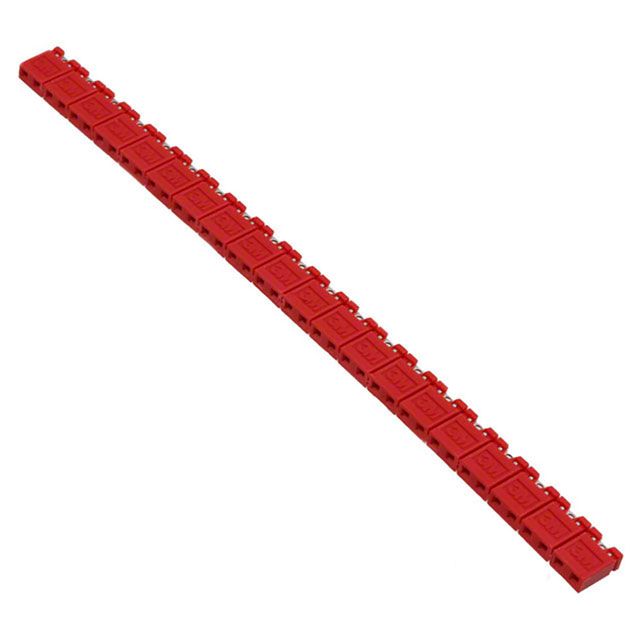

JUMPER (BUSBAR), JUMPER, 2.54MM PITCH HEADERS, 2 POSITIONS, 2.54 MM, 929951 SERIES

Search across all available documentation for this part.

Active

3M (TC)

JUMPER (BUSBAR), JUMPER, 2.54MM PITCH HEADERS, 2 POSITIONS, 2.54 MM, 929951 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	929951-00

Color	Red
Contact Finish	Tin
Contact Finish Thickness	1.9 µm
Contact Finish Thickness	74.8 µin
Gender	Female Sockets
Height [z]	6.1 mm
Height [z]	0.24 in
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top

Part	Contact Finish Thickness	Contact Finish Thickness	Height [z]	Height [z]	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Finish	Color	Housing Material	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Type	Gender
3M (TC) 929951-00	1.9 µm	74.8 µin	6.1 mm	0.24 in	2.54 mm	0.1 in	UL94 V-0	Tin	Red	Polybutylene Terephthalate (PBT)	1 x 2	2	Open Top	Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Red Open Top 0.100" (2.54mm) Tin
