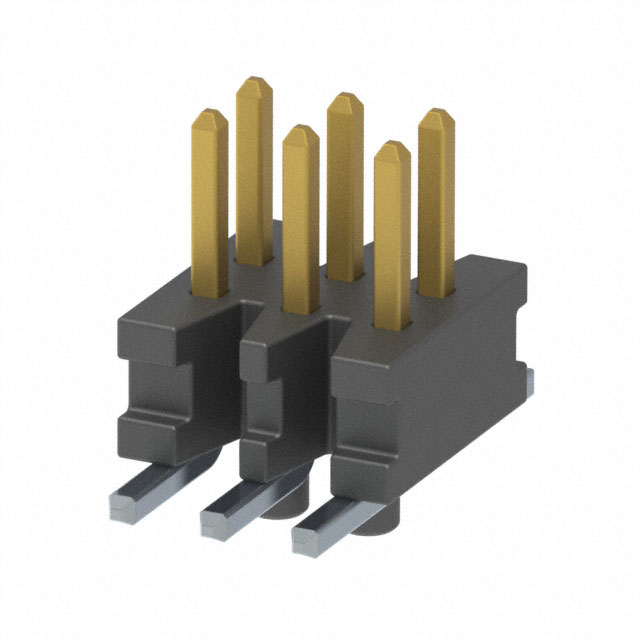

FTMH-103-02-L-DV-A
ActiveSamtec Inc.
CONN HEADER SMD 6POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FTMH-103-02-L-DV-A
ActiveSamtec Inc.
CONN HEADER SMD 6POS 1MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FTMH-103-02-L-DV-A |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating [x] | 1.9 mm |
| Contact Length - Mating [x] | 0.075 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.8 A per Contact |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Row Spacing - Mating | 0.039 " |
| Row Spacing - Mating | 1 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
FTMH-103 Series
| Part | Shrouding | Contact Shape | Number of Rows | Number of Positions Loaded | Material Flammability Rating | Termination | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Material | Insulation Material | Contact Type | Fastening Type | Insulation Color | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Features | Contact Finish - Post | Contact Finish - Mating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Unshrouded | Square | 2 | All | UL94 V-0 | Solder | 0.039 in | 1 mm | 6 | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | Black | 1.9 mm | 0.075 in | 10 çin | 0.25 çm | Surface Mount | 0.039 " | 1 mm | 1.5 mm | 0.059 " | Board Guide | Tin | Gold | Header | -55 °C | 125 °C | 2.8 A per Contact | ||||
Samtec Inc. | Unshrouded | Square | 2 | All | UL94 V-0 | Solder | 0.039 in | 1 mm | 6 | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | Black | 30 Áin | 0.76 Ám | Surface Mount | 0.039 " | 1 mm | 1.5 mm | 0.059 " | Board Guide | Gold | Gold | Header | -55 °C | 125 °C | 2.8 A per Contact | 3 µin | 0.076 µm | 0.065 in | 1.65 mm | ||
Samtec Inc. | Unshrouded | Square | 2 | All | UL94 V-0 | Solder | 0.039 in | 1 mm | 6 | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | Black | 10 çin | 0.25 çm | Surface Mount | 0.039 " | 1 mm | 1.5 mm | 0.059 " | Board Guide | Tin | Gold | Header | -55 °C | 125 °C | 2.8 A per Contact | 0.065 in | 1.65 mm | ||||
Samtec Inc. | Unshrouded | Square | 2 | All | UL94 V-0 | Solder | 0.039 in | 1 mm | 6 | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | Black | 3 µin | 0.076 µm | Surface Mount | 0.039 " | 1 mm | 1.5 mm | 0.059 " | Board Guide | Tin | Gold | Header | -55 °C | 125 °C | 2.8 A per Contact | 0.065 in | 1.65 mm | ||||
Samtec Inc. | Unshrouded | Square | 2 | All | UL94 V-0 | Solder | 0.039 in | 1 mm | 6 | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | Black | 10 çin | 0.25 çm | Surface Mount | 0.039 " | 1 mm | 1.5 mm | 0.059 " | Tin | Gold | Header | -55 °C | 125 °C | 2.8 A per Contact | 0.065 in | 1.65 mm | |||||
Samtec Inc. | Unshrouded | Square | 2 | All | UL94 V-0 | Solder | 0.039 in | 1 mm | 6 | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | Black | 10 çin | 0.25 çm | Surface Mount | 0.039 " | 1 mm | 1.5 mm | 0.059 " | Board Guide | Tin | Gold | Header | -55 °C | 125 °C | 2.8 A per Contact | 0.065 in | 1.65 mm | ||||
Samtec Inc. | Unshrouded | Square | 2 | All | UL94 V-0 | Solder | 0.039 in | 1 mm | 6 | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | Black | 3 µin | 0.076 µm | Surface Mount | 0.039 " | 1 mm | 1.5 mm | 0.059 " | Tin | Gold | Header | -55 °C | 125 °C | 2.8 A per Contact | 0.065 in | 1.65 mm | |||||
Samtec Inc. | Unshrouded | Square | 2 | All | UL94 V-0 | Solder | 0.039 in | 1 mm | 6 | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | Black | 3 µin | 0.076 µm | Surface Mount | 0.039 " | 1 mm | 1.5 mm | 0.059 " | Tin | Gold | Header | -55 °C | 125 °C | 2.8 A per Contact | 0.065 in | 1.65 mm | |||||
Samtec Inc. | Unshrouded | Square | 2 | All | UL94 V-0 | Solder | 0.039 in | 1 mm | 6 | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | Black | 1.9 mm | 0.075 in | 10 çin | 0.25 çm | Surface Mount | 0.039 " | 1 mm | 1.5 mm | 0.059 " | Tin | Gold | Header | -55 °C | 125 °C | 2.8 A per Contact | |||||
Samtec Inc. | Unshrouded | Square | 2 | All | UL94 V-0 | Solder | 0.039 in | 1 mm | 6 | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | Black | 30 Áin | 0.76 Ám | Surface Mount | 0.039 " | 1 mm | 1.5 mm | 0.059 " | Gold | Gold | Header | -55 °C | 125 °C | 2.8 A per Contact | 3 µin | 0.076 µm | 0.065 in | 1.65 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FTMH-103 Series
Connector Header Surface Mount 6 position 0.039" (1.00mm)
