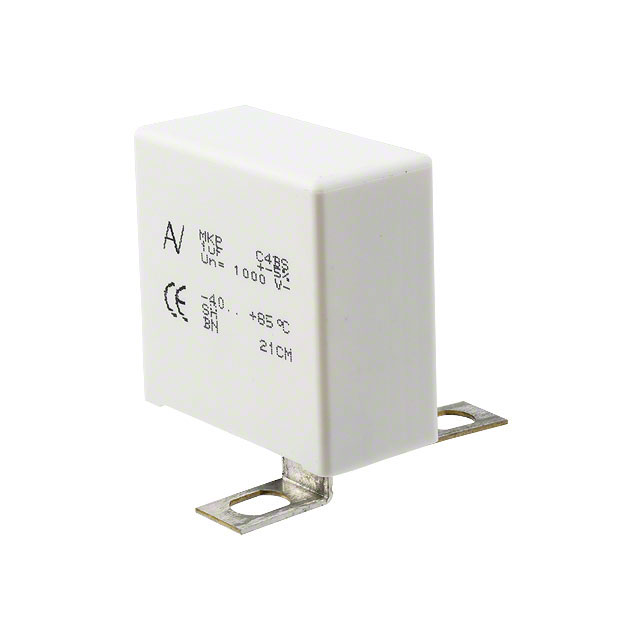

C4BSNBX4100ZEFJ

Active

KEMET

CAP FILM 1UF 5% 1KVDC SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_F3048_C4BS.pdf Datasheet +1

C4BSNBX4100ZEFJ

Active

KEMET

CAP FILM 1UF 5% 1KVDC SCREW

Deep-Dive with AI

DocumentsKEM_F3048_C4BS.pdf Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4BSNBX4100ZEFJ

Applications	DC Link, DC Filtering, Snubber
Capacitance	1 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	3.7 mOhms
Height - Seated (Max) [Max] [z]	1.575 in
Height - Seated (Max) [Max] [z]	40 mm
Lead Spacing	33 mm
Lead Spacing	1.299 in
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Rectangular Box
Size / Dimension [x]	1.634 "
Size / Dimension [x]	41.5 mm
Size / Dimension [y]	20 mm
Size / Dimension [y]	0.787 in
Termination	Screw Terminals
Tolerance	5 %
Voltage Rating - AC	600 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

C4BSNB Series

Part	Applications	Tolerance	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Voltage Rating - AC	Mounting Type	ESR (Equivalent Series Resistance)	Voltage Rating - DC	Voltage Rating - DC	Lead Spacing	Lead Spacing	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
KEMET C4BSNBX4150ZBJJ	DC Filtering DC Link Snubber	5 %	Screw Terminals	42.5 mm	1.102 in	1.673 in	28 mm	1.5 µF	37 mm	1.457 in	Metallized Polypropylene (PP)	600 V	Chassis Mount	2.5 mOhms	1 kVDC	1 kV	0.866 in	22 mm	Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4200ZBLJ	DC Filtering DC Link Snubber	5 %	Screw Terminals	42 mm	1.181 in	1.654 in	30 mm	2 µF	45 mm	1.772 in	Metallized Polypropylene (PP)	600 V	Chassis Mount	2 mOhms	1 kVDC	1 kV	0.866 in	22 mm	Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4200ZALJ	DC Filtering DC Link Snubber	5 %	Screw Terminals	42 mm	1.181 in	1.654 in	30 mm	2 µF	45 mm	1.772 in	Metallized Polypropylene (PP)	600 V	Chassis Mount	2 mOhms	1 kVDC	1 kV	1.004 in	25.5 mm	Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4100ZBFJ	DC Filtering DC Link Snubber	5 %	Screw Terminals	41.5 mm	0.787 in	1.634 "	20 mm	1 µF	40 mm	1.575 in	Metallized Polypropylene (PP)	600 V	Chassis Mount	3.7 mOhms	1 kVDC	1 kV	0.866 in	22 mm	Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4100ZEFJ	DC Filtering DC Link Snubber	5 %	Screw Terminals	41.5 mm	0.787 in	1.634 "	20 mm	1 µF	40 mm	1.575 in	Metallized Polypropylene (PP)	600 V	Chassis Mount	3.7 mOhms	1 kVDC	1 kV	1.299 in	33 mm	Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4150ZAJJ	DC Filtering DC Link Snubber	5 %	Screw Terminals	42.5 mm	1.102 in	1.673 in	28 mm	1.5 µF	37 mm	1.457 in	Metallized Polypropylene (PP)	600 V	Chassis Mount	2.5 mOhms	1 kVDC	1 kV	1.004 in	25.5 mm	Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4100ZA0J	DC Filtering DC Link Snubber	5 %	Screw Terminals					1 µF			Metallized Polypropylene (PP)		Chassis Mount		1 kVDC	1 kV			Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX3470ZA0J	DC Filtering DC Link Snubber	5 %	Screw Terminals					0.47 µF			Metallized Polypropylene (PP)		Chassis Mount		1 kVDC	1 kV			Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4150ZA0J	DC Filtering DC Link Snubber	5 %	Screw Terminals					1.5 µF			Metallized Polypropylene (PP)		Chassis Mount		1 kVDC	1 kV			Rectangular Box	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.19
		48	$ 18.92
		144	$ 16.85
Newark	Each	100	$ 16.32
		250	$ 15.84

Description

General part information

C4BSNB Series

1 µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Rectangular Box

Documents

Technical documentation and resources

KEM_F3048_C4BS.pdf

Datasheet

C4BSNBX4100ZEFJ Spec

Datasheet
