LC5512MV-75Q208I

Obsolete

LATTICE SEMICONDUCTOR

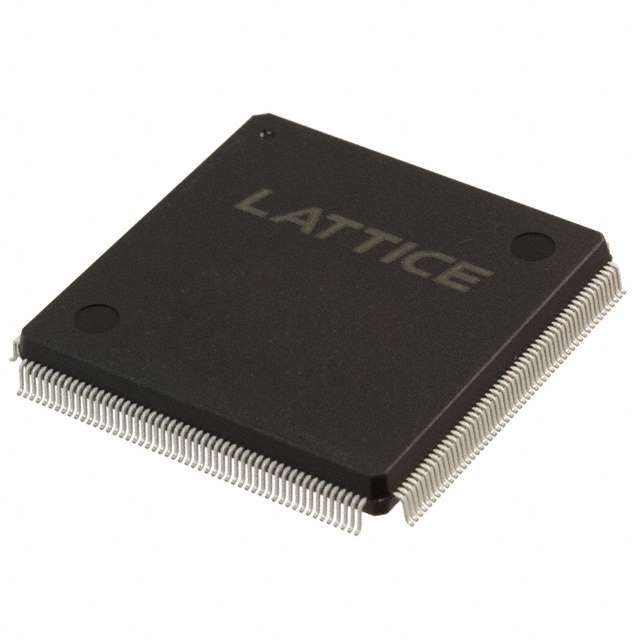

IC CPLD 512MC 7.5NS 208QFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Leaded Pkg PCB Layout Guide

LC5512MV-75Q208I

Obsolete

LATTICE SEMICONDUCTOR

IC CPLD 512MC 7.5NS 208QFP

Deep-Dive with AI

DocumentsDatasheet Leaded Pkg PCB Layout Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LC5512MV-75Q208I

Delay Time tpd(1) Max [Max]	7.5 ns
Mounting Type	Surface Mount
Number of I/O	149
Number of Logic Elements/Blocks	16
Number of Macrocells [custom]	512
Operating Temperature [custom]	-40 °C, 105 °C
Package / Case	208-BFQFP
Programmable Type	In System Programmable
Supplier Device Package	208-PQFP (28x28)
Voltage Supply - Internal [Max]	3.6 V
Voltage Supply - Internal [Min]	3 V

LC5512 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Logic Elements/Blocks	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Mounting Type	Number of I/O	Package / Case	Number of Macrocells [custom]	Supplier Device Package	Programmable Type	Delay Time tpd(1) Max [Max]	Operating Temperature [custom]
LATTICE SEMICONDUCTOR LC5512MV-75Q208C	0 °C	90 °C	16	3 V	3.6 V	Surface Mount	149	208-BFQFP	512	208-PQFP (28x28)	In System Programmable	7.5 ns
LATTICE SEMICONDUCTOR LC5512MV-75FN256C	0 °C	90 °C	16	3 V	3.6 V	Surface Mount	193	256-BGA	512	256-FPBGA (17x17)	In System Programmable	7.5 ns
LATTICE SEMICONDUCTOR LC5512MB-75FN256I			16	2.3 V	2.7 V	Surface Mount	193	256-BGA	512	256-FPBGA (17x17)	In System Programmable	7.5 ns	-40 °C 105 °C
LATTICE SEMICONDUCTOR LC5512MB-75FN256C	0 °C	90 °C	16	2.3 V	2.7 V	Surface Mount	193	256-BGA	512	256-FPBGA (17x17)	In System Programmable	7.5 ns
LATTICE SEMICONDUCTOR LC5512MC-75FN256C	0 °C	90 °C	16	1.65 V	1.95 V	Surface Mount	193	256-BGA	512	256-FPBGA (17x17)	In System Programmable	7.5 ns
LATTICE SEMICONDUCTOR LC5512MV-75F256I			16	3 V	3.6 V	Surface Mount	193	256-BGA	512	256-FPBGA (17x17)	In System Programmable	7.5 ns	-40 °C 105 °C
LATTICE SEMICONDUCTOR LC5512MV-75Q208I			16	3 V	3.6 V	Surface Mount	149	208-BFQFP	512	208-PQFP (28x28)	In System Programmable	7.5 ns	-40 °C 105 °C
LATTICE SEMICONDUCTOR LC5512MB-75F256C	0 °C	90 °C	16	2.3 V	2.7 V	Surface Mount	193	256-BGA	512	256-FPBGA (17x17)	In System Programmable	7.5 ns
LATTICE SEMICONDUCTOR LC5512MV-75FN256I			16	3 V	3.6 V	Surface Mount	193	256-BGA	512	256-FPBGA (17x17)	In System Programmable	7.5 ns	-40 °C 105 °C
LATTICE SEMICONDUCTOR LC5512MB-45F256C	0 °C	90 °C	16	2.3 V	2.7 V	Surface Mount	193	256-BGA	512	256-FPBGA (17x17)	In System Programmable	4.5 ns
