FTS-126-02-F-D

Active

Samtec Inc.

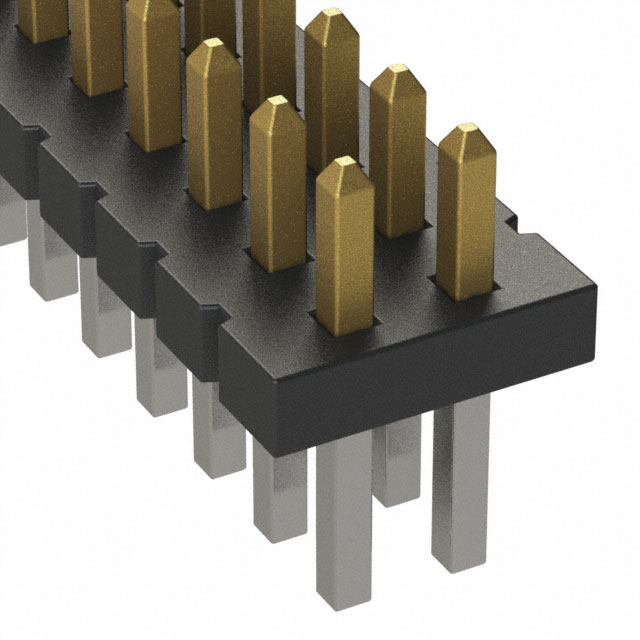

CONN HEADER VERT 52POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

FTS-126-02-F-D

Active

Samtec Inc.

CONN HEADER VERT 52POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTS-126-02-F-D

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.034 in
Insulation Height	0.86 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	52
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.199 in
Overall Contact Length	5.05 mm
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTS-130 Series

Headers & Wire Housings Micro Low Profile Header Strips

...

Part	Connector Type	Contact Finish - Post	Material Flammability Rating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Rows	Fastening Type	Shrouding	Termination	Overall Contact Length	Overall Contact Length	Contact Material	Insulation Height	Insulation Height	Style	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions Loaded	Mounting Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Features	Number of Positions
Samtec Inc. FTS-126-02-F-D	Cuttable Header	Tin	UL94 V-0	Square	3 µin	0.076 µm	0.05 in	1.27 mm	1.9 mm	0.075 in	2	Push-Pull	Unshrouded	Solder	0.199 in	5.05 mm	Phosphor Bronze	0.034 in	0.86 mm	Board to Board Cable	0.09 "	2.29 mm	Gold	0.05 in	1.27 mm	52	All	Through Hole	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Male Pin	Black
Samtec Inc. FTS-126-03-FM-DV	Cuttable Header	Tin	UL94 V-0	Square	3 µin	0.076 µm	0.05 in	1.27 mm			2	Push-Pull	Unshrouded	Solder			Phosphor Bronze	0.034 in	0.86 mm	Board to Board Cable			Gold	0.05 in	1.27 mm	52	All	Surface Mount	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Male Pin	Black	0.065 in	1.65 mm
Samtec Inc. FTS-112-01-F-DV-P	Cuttable Header	Tin	UL94 V-0	Square	3 µin	0.076 µm	0.05 in	1.27 mm			2	Push-Pull	Unshrouded	Solder			Phosphor Bronze	0.034 in	0.86 mm	Board to Board Cable			Gold	0.05 in	1.27 mm	24	All	Surface Mount	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Male Pin	Black	0.12 in	3.05 mm	Pick and Place
Samtec Inc. FTS-150-04-L-DV	Cuttable Header	Tin	UL94 V-0	Square	10 çin	0.25 çm	0.05 in	1.27 mm			2	Push-Pull	Unshrouded	Solder			Phosphor Bronze	0.034 in	0.86 mm	Board to Board Cable			Gold	0.05 in	1.27 mm	100	All	Surface Mount	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Male Pin	Black	0.15 in	3.81 mm
Samtec Inc. FTS-106-02-F-DV-P-TR	Cuttable Header	Tin	UL94 V-0	Square	3 µin	0.076 µm	0.05 in	1.27 mm	1.9 mm	0.075 in	2	Push-Pull	Unshrouded	Solder			Phosphor Bronze	0.034 in	0.86 mm	Board to Board Cable			Gold	0.05 in	1.27 mm	12	All	Surface Mount	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Male Pin	Black			Pick and Place
Samtec Inc. FTS-108-03-F-DV-P	Cuttable Header	Tin	UL94 V-0	Square	3 µin	0.076 µm	0.05 in	1.27 mm			2	Push-Pull	Unshrouded	Solder			Phosphor Bronze	0.034 in	0.86 mm	Board to Board Cable			Gold	0.05 in	1.27 mm		All	Surface Mount	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Male Pin	Black	0.065 in	1.65 mm	Pick and Place	16
Samtec Inc. FTS-108-01-F-DV-P	Cuttable Header	Tin	UL94 V-0	Square	3 µin	0.076 µm	0.05 in	1.27 mm			2	Push-Pull	Unshrouded	Solder			Phosphor Bronze	0.034 in	0.86 mm	Board to Board Cable			Gold	0.05 in	1.27 mm		All	Surface Mount	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Male Pin	Black	0.12 in	3.05 mm	Pick and Place	16
Samtec Inc. FTS-150-02-F-SV	Cuttable Header	Tin	UL94 V-0	Square	3 µin	0.076 µm			1.9 mm	0.075 in	1	Push-Pull	Unshrouded	Solder			Phosphor Bronze	0.034 in	0.86 mm	Board to Board Cable			Gold	0.05 in	1.27 mm	50	All	Surface Mount	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Male Pin	Black
Samtec Inc. FTS-106-01-L-DV-TR	Cuttable Header	Tin	UL94 V-0	Square	10 çin	0.25 çm	0.05 in	1.27 mm			2	Push-Pull	Unshrouded	Solder			Phosphor Bronze	0.034 in	0.86 mm	Board to Board Cable			Gold	0.05 in	1.27 mm	12	All	Surface Mount	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Male Pin	Black	0.12 in	3.05 mm
Samtec Inc. FTS-105-03-S-DV-S	Cuttable Header	Tin	UL94 V-0	Square	30 Áin	0.76 Ám	0.05 in	1.27 mm			2	Push-Pull	Unshrouded	Solder			Phosphor Bronze	0.034 in	0.86 mm	Board to Board Cable			Gold	0.05 in	1.27 mm	10	All	Surface Mount	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Male Pin	Black	0.065 in	1.65 mm	End Shrouds
