325211-11-0
ActiveCurtis Industries

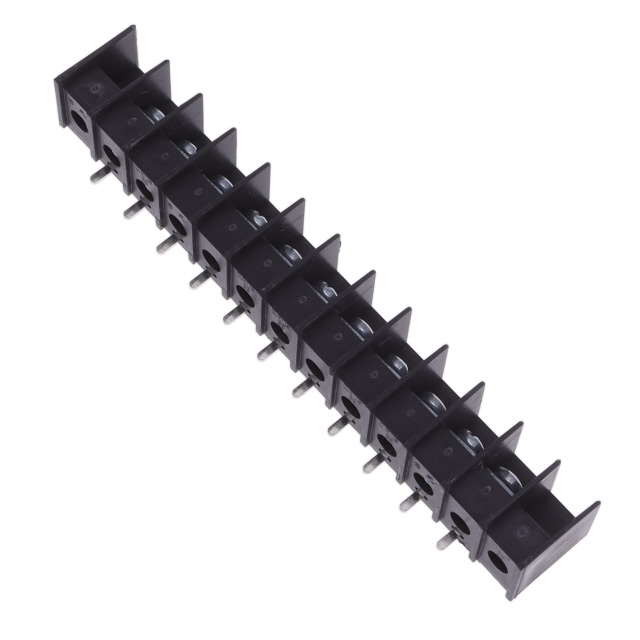

CONN BARRIER STRP 11CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325211-11-0
ActiveCurtis Industries
CONN BARRIER STRP 11CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325211-11-0 | 325211 Series |
|---|---|---|
| - | - | |
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | PC Pin | PC Pin |
| Current Rating (Amps) | 15 A | 15 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Chassis, Panel, Through Hole |
| Number of Circuits | 11 | 1 - 21 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 11 | 3 - 21 |
| Number of Wire Entries | - | 1 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.45 | |
| 10 | $ 4.29 | |||
| 30 | $ 4.08 | |||
| 50 | $ 3.71 | |||
| 100 | $ 3.69 | |||
325211 Series
CONN BARRIER STRIP 3CIRC 0.325"
| Part | Number of Circuits | Operating Temperature | Barrier Type | Terminal Block Type | Bottom Termination | Number of Wire Entries | Voltage Rating | Number of Rows | Mounting Type | Current Rating (Amps) | Material Flammability Rating | Features | Top Termination | Wire Gauge [Min] | Wire Gauge [Max] | Pitch [x] | Pitch [x] | Material - Insulation | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325211-03-0 | 3 | 105 C | 3 Wall (Tri) | Barrier Block | PC Pin | 3 | 300 VDC | 1 | Chassis, Panel, Through Hole | 15 A | UL94 V-0 | Flange | Screws | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325211-21-0 | 21 | 105 C | 3 Wall (Tri) | Barrier Block | PC Pin | 21 | 300 VDC | 1 | Chassis, Panel, Through Hole | 15 A | UL94 V-0 | Flange | Screws | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325211-17-0 | |||||||||||||||||||
Curtis Industries 325211-11-0 | 11 | 105 C | 3 Wall (Tri) | Barrier Block | PC Pin | 11 | 300 VDC | 1 | Chassis, Panel, Through Hole | 15 A | UL94 V-0 | Flange | Screws | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325211-06-0 | 6 | 105 C | 3 Wall (Tri) | Barrier Block | PC Pin | 6 | 300 VDC | 1 | Chassis, Panel, Through Hole | 15 A | UL94 V-0 | Flange | Screws | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325211-04-0 | 4 | 105 C | 3 Wall (Tri) | Barrier Block | PC Pin | 4 | 300 VDC | 1 | Chassis, Panel, Through Hole | 15 A | UL94 V-0 | Flange | Screws | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325211-01-0 | 1 | 105 C | 3 Wall (Tri) | Barrier Block | PC Pin | 300 VDC | 1 | Chassis, Panel, Through Hole | 15 A | UL94 V-0 | Flange | Screws | 14 AWG | 22 AWG | Polypropylene (PP) | 1 | |||
Curtis Industries 325211-15-0 | 15 | 105 C | 3 Wall (Tri) | Barrier Block | PC Pin | 15 | 300 VDC | 1 | Chassis, Panel, Through Hole | 15 A | UL94 V-0 | Flange | Screws | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325211-17-0 | 17 | 105 C | 3 Wall (Tri) | Barrier Block | PC Pin | 17 | 300 VDC | 1 | Chassis, Panel, Through Hole | 15 A | UL94 V-0 | Flange | Screws | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325211-12-0 | 12 | 105 C | 3 Wall (Tri) | Barrier Block | PC Pin | 12 | 300 VDC | 1 | Chassis, Panel, Through Hole | 15 A | UL94 V-0 | Flange | Screws | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Polypropylene (PP) |
Description
General part information
325211 Series
11 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
Documents
Technical documentation and resources
