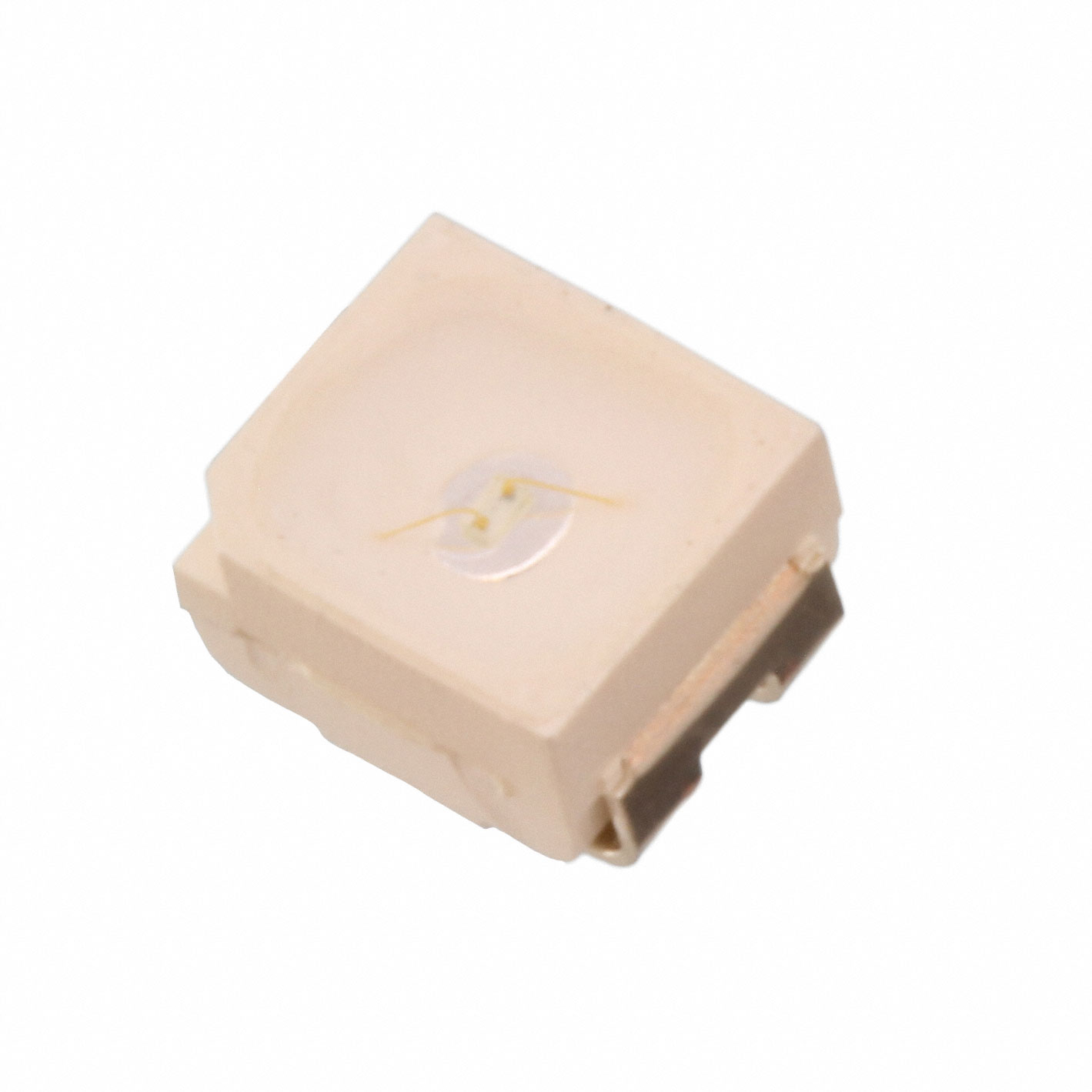

TLEGF1108(T11(O
ObsoleteToshiba Semiconductor and Storage
LED GREEN SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLEGF1108(T11(O
ObsoleteToshiba Semiconductor and Storage
LED GREEN SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLEGF1108(T11(O |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 40 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Style | Oval with Flat Top |
| Millicandela Rating | 2000 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, J-Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.9 mm |
| Voltage - Forward (Vf) (Typ) | 3.5 V |
| Wavelength - Dominant | 528 nm |
| Wavelength - Peak | 518 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TLEGF1108 Series
Green 528nm LED Indication - Discrete 3.5V 4-SMD, J-Lead
Documents
Technical documentation and resources
