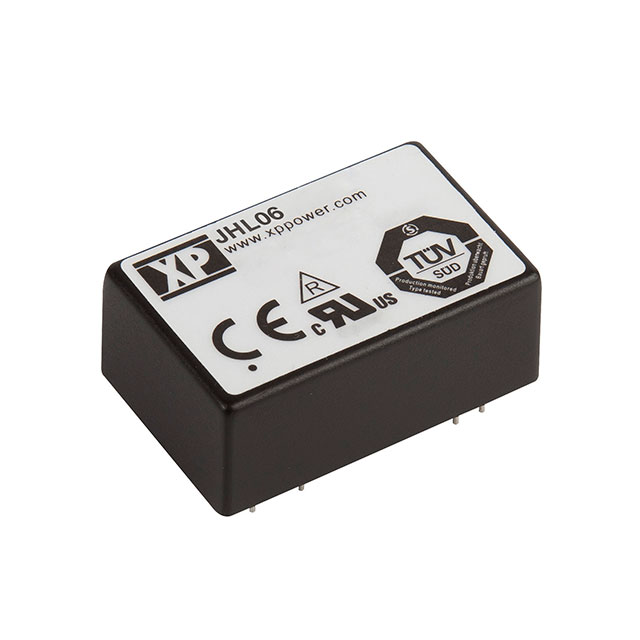

JHL0612D15
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, 2:1, 6 W, 2 OUTPUT, 15 V, 200 MA
Deep-Dive with AI
Search across all available documentation for this part.
JHL0612D15
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, 2:1, 6 W, 2 OUTPUT, 15 V, 200 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JHL0612D15 |
|---|---|
| Applications | Medical |
| Efficiency | 83 % |
| Features | SCP, UVLO, OVP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 9 PC Pad |
| Package / Case | 24-DIP Module |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 17 V |
| Voltage - Input (Min) [Min] | 10 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
JHL0612 Series
The JHL03 and JHL06 series are new additions to our growing line of DC-DC converters specifically designed for medical applications. The new ranges include both 3 Watts and 6 Watt output power versions each having two input ranges of 10V to 17V and 20V to 30VDC for nominal 12V and 24VDC inputs. Single output models provide a choice of 5V, 12V or 15VDC while duals are offered with either ±12V or ±15VDC out. The output is adjustable ±10% via an external resistor. The two new series have medical safety approvals per IEC 60601-1 and ANSI/AMMI ES60601-1 3rd edition standards and meets many of the other requirements specific to the medical industry. They provide 4000VAC double / reinforced insulation for 1 minute with a working voltage of 250VAC. Additionally, they meet 2 x Means of Patient Protection (MOPP) requirements and provide 5000 VAC isolation for 10ms. Patient leakage current is less than 2µA and the range meets EN55011 Level A requirements for EMC without any additional components.
