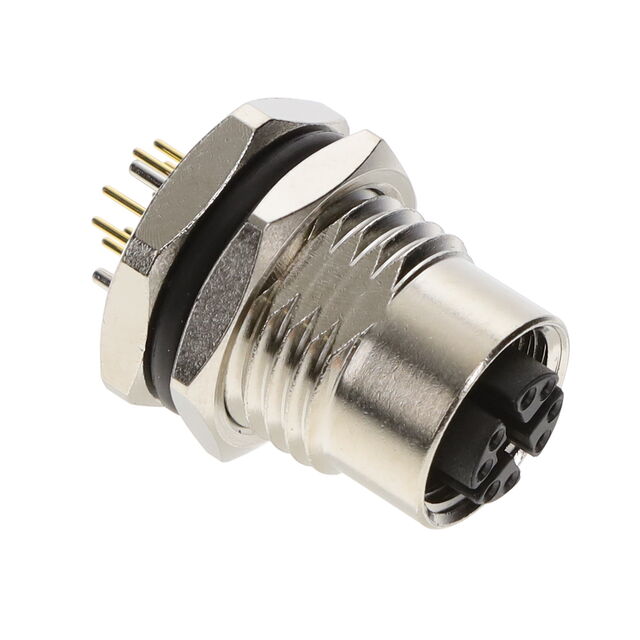

860-X08-2D3R0R4 - 860-X08-2D3R0R4

860-X08-2D3R0R4

Active
MH Connectors

CIRCULAR METRIC CONNECTORS IP67 FEMALE M12 PANEL MOUNT 8 POSITION STRAIGHT DIP SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDrawing EN
860-X08-2D3R0R4 - 860-X08-2D3R0R4

860-X08-2D3R0R4

Active
MH Connectors

CIRCULAR METRIC CONNECTORS IP67 FEMALE M12 PANEL MOUNT 8 POSITION STRAIGHT DIP SOLDER

Deep-Dive with AI

DocumentsDatasheetDrawing EN

Technical Specifications

Parameters and characteristics for this part

Specification860-X08-2D3R0R4
Connector TypeFemale Sockets, Plug
Contact Finish - MatingGold
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact MaterialBrass
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialNylon, Polyamide (PA)
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Front Side Nut
Mounting TypeThrough Hole, Panel Mount
Number of Positions8
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
OrientationX
Primary MaterialMetal
Shell FinishNickel
Shell MaterialBrass
Shell Size - InsertM12-8
ShieldingShielded
TerminationSolder
Voltage Rating50 VAC, 60 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 23.17
10$ 20.29
25$ 19.41
50$ 18.79
100$ 18.16
250$ 17.16
450$ 16.66
NewarkEach 1$ 23.29
5$ 21.45
10$ 19.60
25$ 18.58
50$ 17.84
100$ 17.14

Description

General part information

860-X08 Series

8 Position Circular Connector Plug, Female Sockets Solder
